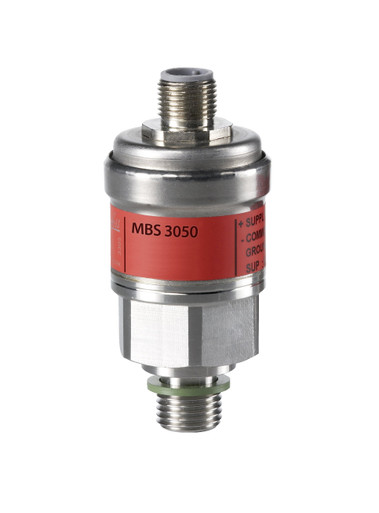

060G1436 Danfoss Pressure transmitter, MBS 3050

060G1436 Danfoss Pressure transmitter, MBS 3050

Original price was: $289.51.Current price is: $72.38.

SKU: 060G1436 Category: Tag:

Description

Product details

Gross weight 0.15 kg
Net weight 0.14 kg
EAN 5702423112333
Gross weight 0.15 kg
Net weight 0.14 kg
EAN 5702423112333



+ supply Pin 4
– common Pin 1
Accuracy, max. +/- FS [%] 1 %
Accuracy, typical +/- FS [%] 0.5 %
Adj. zero point and span No
Ambient temperature range [°C] [Max] 85 °C
Ambient temperature range [°C] [Min] -25 °C
Ambient temperature range [°F] [Max] 185 °F
Ambient temperature range [°F] [Min] -13 °F
Comments PIN 5: GROUND
Compensated temp. range [°C] [Max] 80 °C
Compensated temp. range [°C] [Min] 0 °C
Compensated temp. range [°F] [Max] 176 °F
Compensated temp. range [°F] [Min] 32 °F
Electrical conn. Male/Female Male
Electrical connection M12 x 1
Electrical connection size 5 pin
Electrical connection standard EN 60947-5-2
Enclosure rating IP IP67
Flush diaphragm No
High Clipping Level 22.4
Intrinsically safe No
Low Clipping Level 3.6
Medium temperature range [°C] [Max] 85 °C
Medium temperature range [°C] [Min] -40 °C
Medium temperature range [°F] [Max] 185 °F
Medium temperature range [°F] [Min] -40 °F
Non-linearity BFSL ±FS [%] 0.5 %
Output signal [mA] [Max] 20 mA
Output signal [mA] [Min] 4 mA
Overload pressure max. [bar] 20 bar
Packing format Multi pack
Pressure connection HEX [mm] 27 mm
Pressure connection size 1/4
Pressure connection standard DIN 3852-G
Pressure connection type G
Pressure Male/Female Male
Pressure range [bar] [Max] 9 bar
Pressure range [bar] [Min] -1 bar
Pressure range [psi] [Max] 130.53 psi
Pressure range [psi] [Min] -14.5 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber Yes
Quantity per packing format 20 pc
Response time max. [ms] 4 ms
Specification key MBS 3050-D611-E4FB04-4
Supply voltage [V] DC [Max] 34 V
Supply voltage [V] DC [Min] 9 V
Type MBS 3050
+ supply Pin 4
– common Pin 1
Accuracy, max. +/- FS [%] 1 %
Accuracy, typical +/- FS [%] 0.5 %
Adj. zero point and span No
Ambient temperature range [°C] [Max] 85 °C
Ambient temperature range [°C] [Min] -25 °C
Ambient temperature range [°F] [Max] 185 °F
Ambient temperature range [°F] [Min] -13 °F
Comments PIN 5: GROUND
Compensated temp. range [°C] [Max] 80 °C
Compensated temp. range [°C] [Min] 0 °C
Compensated temp. range [°F] [Max] 176 °F
Compensated temp. range [°F] [Min] 32 °F
Electrical conn. Male/Female Male
Electrical connection M12 x 1
Electrical connection size 5 pin
Electrical connection standard EN 60947-5-2
Enclosure rating IP IP67
Flush diaphragm No
High Clipping Level 22.4
Intrinsically safe No
Low Clipping Level 3.6
Medium temperature range [°C] [Max] 85 °C
Medium temperature range [°C] [Min] -40 °C
Medium temperature range [°F] [Max] 185 °F
Medium temperature range [°F] [Min] -40 °F
Non-linearity BFSL ±FS [%] 0.5 %
Output signal [mA] [Max] 20 mA
Output signal [mA] [Min] 4 mA
Overload pressure max. [bar] 20 bar
Packing format Multi pack
Pressure connection HEX [mm] 27 mm
Pressure connection size 1/4
Pressure connection standard DIN 3852-G
Pressure connection type G
Pressure Male/Female Male
Pressure range [bar] [Max] 9 bar
Pressure range [bar] [Min] -1 bar
Pressure range [psi] [Max] 130.53 psi
Pressure range [psi] [Min] -14.5 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber Yes
Quantity per packing format 20 pc
Response time max. [ms] 4 ms
Specification key MBS 3050-D611-E4FB04-4
Supply voltage [V] DC [Max] 34 V
Supply voltage [V] DC [Min] 9 V
Type MBS 3050

Product name: Pressure transmitter, Type: MBS 3050, Pressure range [psi]: -14.50 – 130.53, Pressure range [bar]: -1.00 – 9.00, Pressure connection size: 1/4, Pressure connection type: G, Output signal [mA]: 4 – 20, Electrical connection size: 5 pin, Electrical connection: M12 x 1

Product details

Gross weight 0.15 kg
Net weight 0.14 kg
EAN 5702423112333
Gross weight 0.15 kg
Net weight 0.14 kg
EAN 5702423112333



+ supply Pin 4
– common Pin 1
Accuracy, max. +/- FS [%] 1 %
Accuracy, typical +/- FS [%] 0.5 %
Adj. zero point and span No
Ambient temperature range [°C] [Max] 85 °C
Ambient temperature range [°C] [Min] -25 °C
Ambient temperature range [°F] [Max] 185 °F
Ambient temperature range [°F] [Min] -13 °F
Comments PIN 5: GROUND
Compensated temp. range [°C] [Max] 80 °C
Compensated temp. range [°C] [Min] 0 °C
Compensated temp. range [°F] [Max] 176 °F
Compensated temp. range [°F] [Min] 32 °F
Electrical conn. Male/Female Male
Electrical connection M12 x 1
Electrical connection size 5 pin
Electrical connection standard EN 60947-5-2
Enclosure rating IP IP67
Flush diaphragm No
High Clipping Level 22.4
Intrinsically safe No
Low Clipping Level 3.6
Medium temperature range [°C] [Max] 85 °C
Medium temperature range [°C] [Min] -40 °C
Medium temperature range [°F] [Max] 185 °F
Medium temperature range [°F] [Min] -40 °F
Non-linearity BFSL ±FS [%] 0.5 %
Output signal [mA] [Max] 20 mA
Output signal [mA] [Min] 4 mA
Overload pressure max. [bar] 20 bar
Packing format Multi pack
Pressure connection HEX [mm] 27 mm
Pressure connection size 1/4
Pressure connection standard DIN 3852-G
Pressure connection type G
Pressure Male/Female Male
Pressure range [bar] [Max] 9 bar
Pressure range [bar] [Min] -1 bar
Pressure range [psi] [Max] 130.53 psi
Pressure range [psi] [Min] -14.5 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber Yes
Quantity per packing format 20 pc
Response time max. [ms] 4 ms
Specification key MBS 3050-D611-E4FB04-4
Supply voltage [V] DC [Max] 34 V
Supply voltage [V] DC [Min] 9 V
Type MBS 3050
+ supply Pin 4
– common Pin 1
Accuracy, max. +/- FS [%] 1 %
Accuracy, typical +/- FS [%] 0.5 %
Adj. zero point and span No
Ambient temperature range [°C] [Max] 85 °C
Ambient temperature range [°C] [Min] -25 °C
Ambient temperature range [°F] [Max] 185 °F
Ambient temperature range [°F] [Min] -13 °F
Comments PIN 5: GROUND
Compensated temp. range [°C] [Max] 80 °C
Compensated temp. range [°C] [Min] 0 °C
Compensated temp. range [°F] [Max] 176 °F
Compensated temp. range [°F] [Min] 32 °F
Electrical conn. Male/Female Male
Electrical connection M12 x 1
Electrical connection size 5 pin
Electrical connection standard EN 60947-5-2
Enclosure rating IP IP67
Flush diaphragm No
High Clipping Level 22.4
Intrinsically safe No
Low Clipping Level 3.6
Medium temperature range [°C] [Max] 85 °C
Medium temperature range [°C] [Min] -40 °C
Medium temperature range [°F] [Max] 185 °F
Medium temperature range [°F] [Min] -40 °F
Non-linearity BFSL ±FS [%] 0.5 %
Output signal [mA] [Max] 20 mA
Output signal [mA] [Min] 4 mA
Overload pressure max. [bar] 20 bar
Packing format Multi pack
Pressure connection HEX [mm] 27 mm
Pressure connection size 1/4
Pressure connection standard DIN 3852-G
Pressure connection type G
Pressure Male/Female Male
Pressure range [bar] [Max] 9 bar
Pressure range [bar] [Min] -1 bar
Pressure range [psi] [Max] 130.53 psi
Pressure range [psi] [Min] -14.5 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber Yes
Quantity per packing format 20 pc
Response time max. [ms] 4 ms
Specification key MBS 3050-D611-E4FB04-4
Supply voltage [V] DC [Max] 34 V
Supply voltage [V] DC [Min] 9 V
Type MBS 3050
