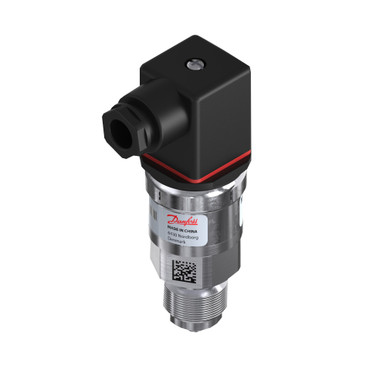

060G1877 Danfoss Pressure transmitter, MBS 3200

060G1877 Danfoss Pressure transmitter, MBS 3200

Original price was: $289.51.Current price is: $72.38.

SKU: 060G1877 Category: Tag:

Description

Product details

Gross weight 0.21 kg
Net weight 0.18 kg
EAN 5702423161126
Gross weight 0.21 kg
Net weight 0.18 kg
EAN 5702423161126



+ supply Pin 1
– common Pin 2
Accuracy, max. +/- FS [%] 1 %
Accuracy, typical +/- FS [%] 0.5 %
Adj. zero point and span No
Ambient temperature range [°C] [Max] 100 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 212 °F
Ambient temperature range [°F] [Min] -40 °F
Approval ATEX
Approval comments ATEX Ex nA IIA T3 Gc
Compensated temp. range [°C] [Max] 100 °C
Compensated temp. range [°C] [Min] 0 °C
Compensated temp. range [°F] [Max] 212 °F
Compensated temp. range [°F] [Min] 32 °F
Electrical conn. Male/Female Male and Female
Electrical connection DIN-plug
Electrical connection size Pg 9
Electrical connection standard EN 175301-803-A
Enclosure rating IP IP65
Flush diaphragm No
High Clipping Level 22.4
Intrinsically safe No
Low Clipping Level 3.6
Medium temperature range [°C] [Max] 125 °C
Medium temperature range [°C] [Min] -40 °C
Medium temperature range [°F] [Max] 257 °F
Medium temperature range [°F] [Min] -40 °F
Non-linearity BFSL ±FS [%] 0.2 %
Output signal Current
Output signal [mA] [Max] 20 mA
Output signal [mA] [Min] 4 mA
Overload pressure max. [bar] 150 bar
Packing format Multi pack
Pressure connection HEX [mm] 27 mm
Pressure connection size 1/2
Pressure connection standard EN 837
Pressure connection type G
Pressure Male/Female Male
Pressure range [bar] [Max] 25 bar
Pressure range [bar] [Min] 0 bar
Pressure range [psi] [Max] 362.59 psi
Pressure range [psi] [Min] 0 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber No
Quantity per packing format 14 pc
Response time max. [ms] 4 ms
Specification key MBS 3200-2411-A1AB08-0
Supply voltage [V] DC [Max] 34 V
Supply voltage [V] DC [Min] 8.2 V
Type MBS 3200
+ supply Pin 1
– common Pin 2
Accuracy, max. +/- FS [%] 1 %
Accuracy, typical +/- FS [%] 0.5 %
Adj. zero point and span No
Ambient temperature range [°C] [Max] 100 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 212 °F
Ambient temperature range [°F] [Min] -40 °F
Approval ATEX
Approval comments ATEX Ex nA IIA T3 Gc
Compensated temp. range [°C] [Max] 100 °C
Compensated temp. range [°C] [Min] 0 °C
Compensated temp. range [°F] [Max] 212 °F
Compensated temp. range [°F] [Min] 32 °F
Electrical conn. Male/Female Male and Female
Electrical connection DIN-plug
Electrical connection size Pg 9
Electrical connection standard EN 175301-803-A
Enclosure rating IP IP65
Flush diaphragm No
High Clipping Level 22.4
Intrinsically safe No
Low Clipping Level 3.6
Medium temperature range [°C] [Max] 125 °C
Medium temperature range [°C] [Min] -40 °C
Medium temperature range [°F] [Max] 257 °F
Medium temperature range [°F] [Min] -40 °F
Non-linearity BFSL ±FS [%] 0.2 %
Output signal Current
Output signal [mA] [Max] 20 mA
Output signal [mA] [Min] 4 mA
Overload pressure max. [bar] 150 bar
Packing format Multi pack
Pressure connection HEX [mm] 27 mm
Pressure connection size 1/2
Pressure connection standard EN 837
Pressure connection type G
Pressure Male/Female Male
Pressure range [bar] [Max] 25 bar
Pressure range [bar] [Min] 0 bar
Pressure range [psi] [Max] 362.59 psi
Pressure range [psi] [Min] 0 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber No
Quantity per packing format 14 pc
Response time max. [ms] 4 ms
Specification key MBS 3200-2411-A1AB08-0
Supply voltage [V] DC [Max] 34 V
Supply voltage [V] DC [Min] 8.2 V
Type MBS 3200

Product name: Pressure transmitter, Type: MBS 3200, Pressure range [psi]: 0.00 – 362.59, Pressure range [bar]: 0.00 – 25.00, Pressure connection size: 1/2, Pressure connection type: G, Output signal [mA]: 4 – 20, Electrical connection size: Pg 9, Electrical connection: DIN-plug

Product details

Gross weight 0.21 kg
Net weight 0.18 kg
EAN 5702423161126
Gross weight 0.21 kg
Net weight 0.18 kg
EAN 5702423161126



+ supply Pin 1
– common Pin 2
Accuracy, max. +/- FS [%] 1 %
Accuracy, typical +/- FS [%] 0.5 %
Adj. zero point and span No
Ambient temperature range [°C] [Max] 100 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 212 °F
Ambient temperature range [°F] [Min] -40 °F
Approval ATEX
Approval comments ATEX Ex nA IIA T3 Gc
Compensated temp. range [°C] [Max] 100 °C
Compensated temp. range [°C] [Min] 0 °C
Compensated temp. range [°F] [Max] 212 °F
Compensated temp. range [°F] [Min] 32 °F
Electrical conn. Male/Female Male and Female
Electrical connection DIN-plug
Electrical connection size Pg 9
Electrical connection standard EN 175301-803-A
Enclosure rating IP IP65
Flush diaphragm No
High Clipping Level 22.4
Intrinsically safe No
Low Clipping Level 3.6
Medium temperature range [°C] [Max] 125 °C
Medium temperature range [°C] [Min] -40 °C
Medium temperature range [°F] [Max] 257 °F
Medium temperature range [°F] [Min] -40 °F
Non-linearity BFSL ±FS [%] 0.2 %
Output signal Current
Output signal [mA] [Max] 20 mA
Output signal [mA] [Min] 4 mA
Overload pressure max. [bar] 150 bar
Packing format Multi pack
Pressure connection HEX [mm] 27 mm
Pressure connection size 1/2
Pressure connection standard EN 837
Pressure connection type G
Pressure Male/Female Male
Pressure range [bar] [Max] 25 bar
Pressure range [bar] [Min] 0 bar
Pressure range [psi] [Max] 362.59 psi
Pressure range [psi] [Min] 0 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber No
Quantity per packing format 14 pc
Response time max. [ms] 4 ms
Specification key MBS 3200-2411-A1AB08-0
Supply voltage [V] DC [Max] 34 V
Supply voltage [V] DC [Min] 8.2 V
Type MBS 3200
+ supply Pin 1
– common Pin 2
Accuracy, max. +/- FS [%] 1 %
Accuracy, typical +/- FS [%] 0.5 %
Adj. zero point and span No
Ambient temperature range [°C] [Max] 100 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 212 °F
Ambient temperature range [°F] [Min] -40 °F
Approval ATEX
Approval comments ATEX Ex nA IIA T3 Gc
Compensated temp. range [°C] [Max] 100 °C
Compensated temp. range [°C] [Min] 0 °C
Compensated temp. range [°F] [Max] 212 °F
Compensated temp. range [°F] [Min] 32 °F
Electrical conn. Male/Female Male and Female
Electrical connection DIN-plug
Electrical connection size Pg 9
Electrical connection standard EN 175301-803-A
Enclosure rating IP IP65
Flush diaphragm No
High Clipping Level 22.4
Intrinsically safe No
Low Clipping Level 3.6
Medium temperature range [°C] [Max] 125 °C
Medium temperature range [°C] [Min] -40 °C
Medium temperature range [°F] [Max] 257 °F
Medium temperature range [°F] [Min] -40 °F
Non-linearity BFSL ±FS [%] 0.2 %
Output signal Current
Output signal [mA] [Max] 20 mA
Output signal [mA] [Min] 4 mA
Overload pressure max. [bar] 150 bar
Packing format Multi pack
Pressure connection HEX [mm] 27 mm
Pressure connection size 1/2
Pressure connection standard EN 837
Pressure connection type G
Pressure Male/Female Male
Pressure range [bar] [Max] 25 bar
Pressure range [bar] [Min] 0 bar
Pressure range [psi] [Max] 362.59 psi
Pressure range [psi] [Min] 0 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber No
Quantity per packing format 14 pc
Response time max. [ms] 4 ms
Specification key MBS 3200-2411-A1AB08-0
Supply voltage [V] DC [Max] 34 V
Supply voltage [V] DC [Min] 8.2 V
Type MBS 3200
