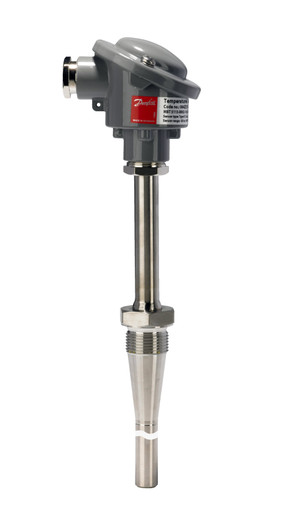

084Z5052 Danfoss Temperature sensor, MBT 5113

084Z5052 Danfoss Temperature sensor, MBT 5113

Original price was: $516.42.Current price is: $103.28.

SKU: 084Z5052 Category: Tag:

Description

Product details

Gross weight 0.57 kg
Net weight 0.39 kg
EAN 5702423141050
Gross weight 0.57 kg
Net weight 0.39 kg
EAN 5702423141050



Ambient temperature max. [°C] 90 °C
Ambient temperature max. [°F] 194 °F
Connection material AISI 316 Ti
Connection standard ISO 228
Connection type G
Electrical connection Type B
Electrical connection size Pg 16
Enclosure rating IP IP65
Extension length [in] 1.97 in
Extension length [mm] 50 mm
Insertion length [in] 3.94 in
Insertion length [mm] 100 mm
Insertion type Fixed
Number of terminals [pcs] 2 pc
Output signal mV
Packing format Multi pack
Process connection Male/Female Male
Process connection material AISI 316 Ti
Process Connections G3/4 , ISO 228-1-A
Product Group MULTI BLOCK
Product group Sensors
Product name Temperature sensor
Protection tube diameter [in] [Max] 0.95 in
Protection tube diameter [in] [Min] 0.55 in
Protection tube diameter [mm] [Max] 24 mm
Protection tube diameter [mm] [Min] 14 mm
Protection tube material AISI 316 Ti
Quantity per packing format 9 pc
Sensor element standard EN 60584-2
Sensor element tolerance Class 2
Sensor Insert Exchangeable
Temperature range [°C] [Max] 800 °C
Temperature range [°C] [Min] -50 °C
Temperature range [°F] [Max] 1472 °F
Temperature range [°F] [Min] -58 °F
Thermocouple 1 x NiCr-Ni, Type K
Thermocouple design std. EN 61515
Thermocouple tolerance EN 60584-2 Class 2
Type MBT 5113
Type designation MBT 5113-B001-100-10-0000
Wires [pcs] 2 pc
Ambient temperature max. [°C] 90 °C
Ambient temperature max. [°F] 194 °F
Connection material AISI 316 Ti
Connection standard ISO 228
Connection type G
Electrical connection Type B
Electrical connection size Pg 16
Enclosure rating IP IP65
Extension length [in] 1.97 in
Extension length [mm] 50 mm
Insertion length [in] 3.94 in
Insertion length [mm] 100 mm
Insertion type Fixed
Number of terminals [pcs] 2 pc
Output signal mV
Packing format Multi pack
Process connection Male/Female Male
Process connection material AISI 316 Ti
Process Connections G3/4 , ISO 228-1-A
Product Group MULTI BLOCK
Product group Sensors
Product name Temperature sensor
Protection tube diameter [in] [Max] 0.95 in
Protection tube diameter [in] [Min] 0.55 in
Protection tube diameter [mm] [Max] 24 mm
Protection tube diameter [mm] [Min] 14 mm
Protection tube material AISI 316 Ti
Quantity per packing format 9 pc
Sensor element standard EN 60584-2
Sensor element tolerance Class 2
Sensor Insert Exchangeable
Temperature range [°C] [Max] 800 °C
Temperature range [°C] [Min] -50 °C
Temperature range [°F] [Max] 1472 °F
Temperature range [°F] [Min] -58 °F
Thermocouple 1 x NiCr-Ni, Type K
Thermocouple design std. EN 61515
Thermocouple tolerance EN 60584-2 Class 2
Type MBT 5113
Type designation MBT 5113-B001-100-10-0000
Wires [pcs] 2 pc

Process Connections: G3/4 , ISO 228-1-A, Temperature range [°C] [Min]: -50, Temperature range [°C] [Max]: 800, Insertion length [mm]: 100, Protection tube material: AISI 316 Ti, Electrical connection: Type B, Electrical connection size: Pg 16

Product details

Gross weight 0.57 kg
Net weight 0.39 kg
EAN 5702423141050
Gross weight 0.57 kg
Net weight 0.39 kg
EAN 5702423141050



Ambient temperature max. [°C] 90 °C
Ambient temperature max. [°F] 194 °F
Connection material AISI 316 Ti
Connection standard ISO 228
Connection type G
Electrical connection Type B
Electrical connection size Pg 16
Enclosure rating IP IP65
Extension length [in] 1.97 in
Extension length [mm] 50 mm
Insertion length [in] 3.94 in
Insertion length [mm] 100 mm
Insertion type Fixed
Number of terminals [pcs] 2 pc
Output signal mV
Packing format Multi pack
Process connection Male/Female Male
Process connection material AISI 316 Ti
Process Connections G3/4 , ISO 228-1-A
Product Group MULTI BLOCK
Product group Sensors
Product name Temperature sensor
Protection tube diameter [in] [Max] 0.95 in
Protection tube diameter [in] [Min] 0.55 in
Protection tube diameter [mm] [Max] 24 mm
Protection tube diameter [mm] [Min] 14 mm
Protection tube material AISI 316 Ti
Quantity per packing format 9 pc
Sensor element standard EN 60584-2
Sensor element tolerance Class 2
Sensor Insert Exchangeable
Temperature range [°C] [Max] 800 °C
Temperature range [°C] [Min] -50 °C
Temperature range [°F] [Max] 1472 °F
Temperature range [°F] [Min] -58 °F
Thermocouple 1 x NiCr-Ni, Type K
Thermocouple design std. EN 61515
Thermocouple tolerance EN 60584-2 Class 2
Type MBT 5113
Type designation MBT 5113-B001-100-10-0000
Wires [pcs] 2 pc
Ambient temperature max. [°C] 90 °C
Ambient temperature max. [°F] 194 °F
Connection material AISI 316 Ti
Connection standard ISO 228
Connection type G
Electrical connection Type B
Electrical connection size Pg 16
Enclosure rating IP IP65
Extension length [in] 1.97 in
Extension length [mm] 50 mm
Insertion length [in] 3.94 in
Insertion length [mm] 100 mm
Insertion type Fixed
Number of terminals [pcs] 2 pc
Output signal mV
Packing format Multi pack
Process connection Male/Female Male
Process connection material AISI 316 Ti
Process Connections G3/4 , ISO 228-1-A
Product Group MULTI BLOCK
Product group Sensors
Product name Temperature sensor
Protection tube diameter [in] [Max] 0.95 in
Protection tube diameter [in] [Min] 0.55 in
Protection tube diameter [mm] [Max] 24 mm
Protection tube diameter [mm] [Min] 14 mm
Protection tube material AISI 316 Ti
Quantity per packing format 9 pc
Sensor element standard EN 60584-2
Sensor element tolerance Class 2
Sensor Insert Exchangeable
Temperature range [°C] [Max] 800 °C
Temperature range [°C] [Min] -50 °C
Temperature range [°F] [Max] 1472 °F
Temperature range [°F] [Min] -58 °F
Thermocouple 1 x NiCr-Ni, Type K
Thermocouple design std. EN 61515
Thermocouple tolerance EN 60584-2 Class 2
Type MBT 5113
Type designation MBT 5113-B001-100-10-0000
Wires [pcs] 2 pc
