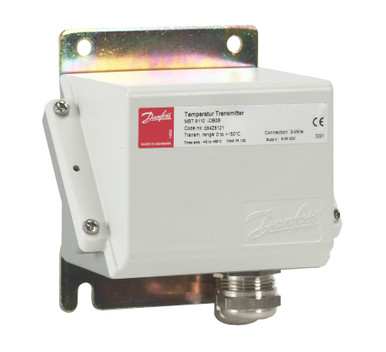

084Z8118 Danfoss Temperature sensor, MBT 9110

Description

Product details

Gross weight	0.67 kg
Net weight	0.59 kg

EAN	5702423098705

Gross weight	0.67 kg
Net weight	0.59 kg
EAN	5702423098705



Ambient temperature max. [°C]	85 °C
Ambient temperature max. [°F]	185 °F
Electrical connection	Output 2 wire
Electrical connection size	2 terminals
Enclosure rating IP	IP54
Insertion type	Fixed
Number of terminals [pcs]	2 pc
Output signal [mA] [Max]	20 mA
Output signal [mA] [Min]	4 mA
Packing format	Multi pack
Product group	Sensors
Product name	Temperature sensor
Quantity per packing format	8 pc
Sensor elem. resistance [Ohm]	100 Ohm
Sensor element [pc]	1 pc

Sensor element type	Pt
Supply voltage [V] DC [Max]	35 V
Supply voltage [V] DC [Min]	8 V
Temperature range [°C] [Max]	850 °C
Temperature range [°C] [Min]	-200 °C
Temperature range [°F] [Max]	1562 °F
Temperature range [°F] [Min]	-328 °F
Transmitter setting range [°C] [Max]	150 °C
Transmitter setting range [°C] [Min]	-10 °C
Transmitter setting range [°F] [Max]	302 °F
Transmitter setting range [°F] [Min]	14 °F
Transmitter type	Standard in box
Type	MBT 9110
Type designation	MBT 9110-000B-D215
Wires [pcs]	3 pc

Ambient temperature max. [°C]	85 °C
Ambient temperature max. [°F]	185 °F
Electrical connection	Output 2 wire
Electrical connection size	2 terminals
Enclosure rating IP	IP54
Insertion type	Fixed
Number of terminals [pcs]	2 pc
Output signal [mA] [Max]	20 mA
Output signal [mA] [Min]	4 mA
Packing format	Multi pack
Product group	Sensors
Product name	Temperature sensor
Quantity per packing format	8 pc
Sensor elem. resistance [Ohm]	100 Ohm
Sensor element [pc]	1 pc
Sensor element type	Pt
Supply voltage [V] DC [Max]	35 V
Supply voltage [V] DC [Min]	8 V
Temperature range [°C] [Max]	850 °C
Temperature range [°C] [Min]	-200 °C
Temperature range [°F] [Max]	1562 °F
Temperature range [°F] [Min]	-328 °F
Transmitter setting range [°C] [Max]	150 °C
Transmitter setting range [°C] [Min]	-10 °C
Transmitter setting range [°F] [Max]	302 °F
Transmitter setting range [°F] [Min]	14 °F
Transmitter type	Standard in box
Type	MBT 9110
Type designation	MBT 9110-000B-D215
Wires [pcs]	3 pc

Temperature range [°C] [Min]: -200, Temperature range [°C] [Max]: 850, Output signal [mA] [Min]: 4, Output signal [mA] [Max]: 20, Sensor element type: Pt, Sensor elem. resistance [Ohm]: 100, Electrical connection: Output 2 wire, Electrical connection size: 2 terminals

Product details

Gross weight	0.67 kg
Net weight	0.59 kg

EAN	5702423098705

Gross weight	0.67 kg
Net weight	0.59 kg
EAN	5702423098705



Ambient temperature max. [°C]	85 °C
Ambient temperature max. [°F]	185 °F
Electrical connection	Output 2 wire
Electrical connection size	2 terminals
Enclosure rating IP	IP54
Insertion type	Fixed
Number of terminals [pcs]	2 pc
Output signal [mA] [Max]	20 mA
Output signal [mA] [Min]	4 mA
Packing format	Multi pack
Product group	Sensors
Product name	Temperature sensor
Quantity per packing format	8 pc
Sensor elem. resistance [Ohm]	100 Ohm
Sensor element [pc]	1 pc

Sensor element type	Pt
Supply voltage [V] DC [Max]	35 V
Supply voltage [V] DC [Min]	8 V
Temperature range [°C] [Max]	850 °C
Temperature range [°C] [Min]	-200 °C
Temperature range [°F] [Max]	1562 °F
Temperature range [°F] [Min]	-328 °F
Transmitter setting range [°C] [Max]	150 °C
Transmitter setting range [°C] [Min]	-10 °C
Transmitter setting range [°F] [Max]	302 °F
Transmitter setting range [°F] [Min]	14 °F
Transmitter type	Standard in box
Type	MBT 9110
Type designation	MBT 9110-000B-D215
Wires [pcs]	3 pc

Ambient temperature max. [°C]	85 °C
Ambient temperature max. [°F]	185 °F
Electrical connection	Output 2 wire
Electrical connection size	2 terminals
Enclosure rating IP	IP54
Insertion type	Fixed
Number of terminals [pcs]	2 pc
Output signal [mA] [Max]	20 mA
Output signal [mA] [Min]	4 mA
Packing format	Multi pack
Product group	Sensors
Product name	Temperature sensor
Quantity per packing format	8 pc
Sensor elem. resistance [Ohm]	100 Ohm
Sensor element [pc]	1 pc
Sensor element type	Pt
Supply voltage [V] DC [Max]	35 V
Supply voltage [V] DC [Min]	8 V
Temperature range [°C] [Max]	850 °C
Temperature range [°C] [Min]	-200 °C
Temperature range [°F] [Max]	1562 °F
Temperature range [°F] [Min]	-328 °F
Transmitter setting range [°C] [Max]	150 °C
Transmitter setting range [°C] [Min]	-10 °C
Transmitter setting range [°F] [Max]	302 °F
Transmitter setting range [°F] [Min]	14 °F
Transmitter type	Standard in box
Type	MBT 9110
Type designation	MBT 9110-000B-D215
Wires [pcs]	3 pc
