Description

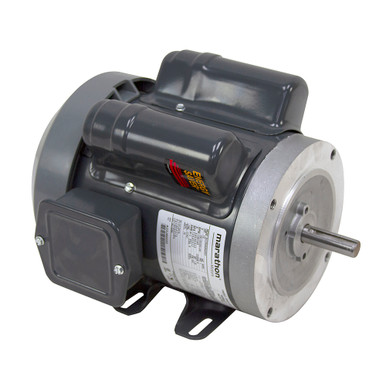

1/2 HP 1725 RPM MOTOR
Brand new, Marathon model 5KCR46MN0055Y capacitor-start, capacitor-run motor. Thermal overload protection with manual reset.
SPECIFICATIONS
- Manufacturer Marathon
- Model Number 5KCR46MN0055Y
- Power 1/2 HP
- Voltage 120/240 Volt AC
- Phase 1
- Frequency 60 Hz
- Amperage 5.6/2.8 Amps
- Speed 1725 RPM
- Rotation Reversible
- Service Factor 1.25
- Bearings Ball
- Thermal Overload Protection Manual
- Enclosure TEFC
- Duty Continuous
- Frame 56C
- Base Mount Four 7/8″ x 5/16″ elliptical slots on 4-7/8″ x 3″ centers
- Face Mount Four 3/8″-16 threaded holes in motor face on 5-7/8″ B.C., 4-1/2″ pilot
- Shaft 5/8″ dia. x 1-7/8″ overall length w/ 3/16″ wide x 1-3/8″ long keyway
- Size 9.72″ x 9.07″ x 8.40″
- Shpg. 33 lbs.
