Description

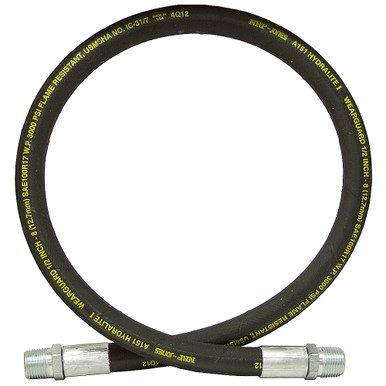

1/2″ X 30″ 1/2″ NPTM X 1/2″ NPTM 3000 PSI HYD HOSE
Brand new, one-wire braided SAE 100R17 hydraulic hose assembly. Assembled in USA from NRP JONES hose stock and USA-made plated steel fittings. Oil and abrasion resistant Wearguard® neoprene jacket, MSHA approved. Oil resistant nitrile tube. Length measured from end to end.
SPECIFICATIONS
- Hose Type SAE 100R17 HydraLite I, One-Wire Braided
- Overall Length 30″
- Inside Hose Diameter 1/2″
- Outside Jacket Diameter 0.80″
- Fittings 1/2″ NPTM
- Minimum Bend Radius 3.50″
- Temperature Range -40° to 250° F
- Working Pressure 3000 PSI
- Burst Pressure 12000 PSI
- Shpg. 1.5 Lbs.
| 1/2″ Single Wire Hydraulic Hose Clamp A3-20H-A | 902264 |
| 1/2″ Single Wire Dual Hydraulic Hose Clamp AT3-20H-A | 902273 |
