Description

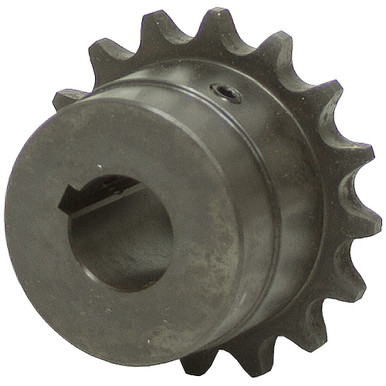

DOUBLE ROLLER CHAIN COUPLER SPROCKET HALF
Brand new. Double roller chain coupler sprocket half. Three piece chain coupler consist of two sprockets connected together with double roller chain. Sold as individual halves and chain. Purchase two halves and one coupler chain to make a complete coupling. For reversing operation, shock, pulsating loads or other severe operating conditions select the next larger coupling size. Furnished with standard keyway and setscrew.
SPECIFICATIONS
- Pitch 50
- Sprocket Teeth 16
- Bore 1-7/16″ dia. w/ 3/8″ keyway
- Max. Speed 4000 RPM
- Max. Torque 159.6 ft.-lbs.
- Max. HP @ Speed 109.4 HP @ 3600 RPM
- Size 3.78″ dia. x 1.77″
- Shpg. 3 lbs.
| 3/4″ Bore Coupler Sprocket 50 Pitch 16 Tooth | 602841 |
| 7/8″ Bore Coupler Sprocket 50 Pitch 16 Tooth | 602842 |
| 1″ Bore Coupler Sprocket 50 Pith 16 Tooth | 602843 |
| 1-1/8″ Bore Coupler Sprocket 50 Pitch 16 Tooth | 602844 |
| 1-3/16″ Bore Coupler Sprocket 50 Pitch 16 Tooth | 604205 |
| 1-1/4″ Bore Coupler Sprocket 50 Pitch 16 Tooth | 602845 |
| 1-3/8″ Bore Coupler Sprocket 50 Pitch 16 Tooth | 602846 |
| 1-1/2″ Bore Coupler Sprocket 50 Pitch 16 Tooth | 602848 |
| 1-5/8″ Bore Coupler Sprocket 50 Pitch 16 Tooth | 602849 |
| 5/8″ Smooth Bore Coupler Sproket 50 Pitch 16 Tooth (Machinable bore range 5/8″ to 1-5/8″) | 602839 |
| 50 Pitch 16 Tooth Coupler Chain | 602850 |
| 50 Pitch 16 Tooth Coupling Cover | 602851 |
