Description

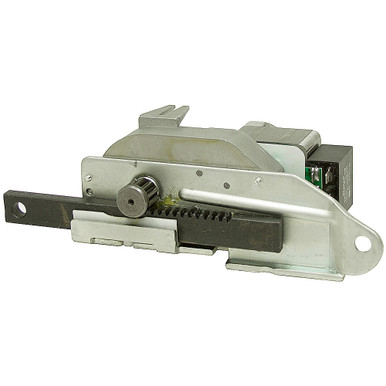

1-1/2″ STROKE 120 VOLT AC LINEAR ACTUATOR
New, Icon Health and Fitness model 6197V 191549 rack and pinion-style linear actuator. Thermal overload protection. Shaded pole motor with open construction. Stroke is 1-1/2″ to prevent locking up of pinion.
SPECIFICATIONS
- Brand Health and Fitness
- Model Number 6197V 191549
- Voltage 120 Volt AC
- Phase 1
- Amperage 1.2 Amps
- Speed 3.20 RPM
- Output 2-1/2″ Long, 13 Tooth Rack and 0.765″ O.D., 10 Tooth Pinion Gear
- Stroke 1-1/2″
- Limit Switches No Limit Switches
- Direction Reversible
- Duty Intermittent
- Retracted length 8-5/8″
- Pin Holes 3/8″
- Size 9.375″ x 5″ x 3.25″
- Shpg. 7 lbs.
