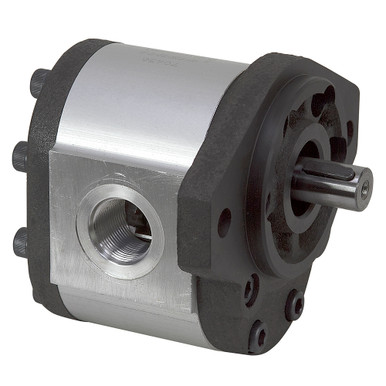

1.57 cu in Hydraulic Pump Dynamic GP-F25-26-P-C

Description

1.57 CU IN DYNAMIC GP-F25-26-P-C HYDRAULIC PUMP
Brand new. Dynamic GP-F25-26-P-C hydraulic gear pump. Constructed of an aluminum center section and cast iron end plates.

SPECIFICATIONS

• Manufacturer Dynamic
• Model Number 70437
• Build Number  GP-F25-26-P-C
• Disp. 1.57 cu. in. / rev.
• Pump Type Gear
• Rotation CW
• Pressure:
     3625 PSI Peak
• Speed:
     2000 RPM Rated
     3000 RPM Max.
• Flow:
     12.64 GPM Rated
     18.96 GPM Max.
• Mount 2 bolt SAE B
• Shaft 7/8″ dia. x 1.81″ long with 1/4″ wide keyway
• Rqd. Filtration 25 micron
• Inlet Port SAE 16
• Outlet Port SAE 12
• Size 5.27″ x 6.85″ x 6.32″
• Shpg. 20 lbs.
