Description

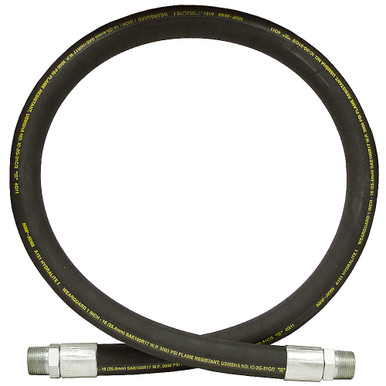

1″ X 24″ 1 NPTM X 1 NPTM 3000 PSI HYD HOSE
Brand new, two-wire braided SAE 100R17 hydraulic hose assembly. Assembled in USA from NRP JONES hose stock and USA-made plated steel fittings. Oil and abrasion resistant Wearguard® neoprene jacket, MSHA approved. Oil resistant nitrile tube. Length measured from end to end.
SPECIFICATIONS
- Hose Type SAE 100R17 HydraLite I, Two-Wire Braided
- Overall Length 24″
- Inside Hose Diameter 1″
- Outside Jacket Diameter 1.49″
- Fittings 1″ NPTM
- Minimum Bend Radius 6″
- Temperature Range -40° to 250°F
- Working Pressure 3000 PSI
- Burst Pressure 12000 PSI
- Shpg. 4.2 lbs.
| 1″ Two Wire Hydraulic Hose Clamp A5-38-A | 902270 |
| 1″ Two Wire Dual Hydraulic Hose Clamp AT5-38-A | 902277 |
