Description
Product details
| Gross weight |
22.5 kg |
| Net weight |
23 kg |
| Gross weight |
22.5 kg |
| Net weight |
23 kg |
| EAN |
5702428565943 |
| Air flow @ 50Hz [m³/h] |
631 m3/h |
| Applications |
MBP |
| Approval standard |
CE
EAC |
| Compressor model |
SC10MLX |
| Compressor power supply [V/Ph/Hz] |
230/1/50 |
| Condenser type |
BG_4/5 |
|
OP-MCHC010SCA01G |
| Electrical code |
G |
| Fan blade size [mm] |
254 mm |
| Fan cowl/grill type |
Grill |
| Fan current @ 50Hz [A] |
0.18 A |
| Fan diameter [mm] |
254 mm |
| Fan power consumption @ 50Hz [W] |
13 W |
| Fan power output @ 50Hz [W] |
17 W |
| Fan power supply [V/Ph/Hz] |
230/1/50 |
| Fan voltage @ 50Hz (max) [V] [Max] |
253 V |
| Fan voltage @ 50Hz (max) [V] [Min] |
207 V |
| Liquid line connection [mm] |
6 mm |
| Model number |
OP-MCHC010SCA01G |
| No. of phases (compressor) |
1 |
| No. of phases (fan) |
1 |
| Number of fans |
1 |
| Receiver approval |
CE |
| Receiver volume [L] |
1.1 L |
| Refrigerant |
R404A
R507 |
| RLA |
3.9 A |
| Segment usage |
Medium Back Pressure |
| Suction connection size [mm] |
8 µm |
| Type |
Optyma™ |
| Type designation |
Condensing Units |
| Version |
A01 |
| Voltage 50Hz [V] |
207 V |
| Voltage 50Hz [V] [Max] |
253 V |
| Air flow @ 50Hz [m³/h] |
631 m3/h |
| Applications |
MBP |
| Approval standard |
CE
EAC |
| Compressor model |
SC10MLX |
| Compressor power supply [V/Ph/Hz] |
230/1/50 |
| Condenser type |
BG_4/5 |
|
OP-MCHC010SCA01G |
| Electrical code |
G |
| Fan blade size [mm] |
254 mm |
| Fan cowl/grill type |
Grill |
| Fan current @ 50Hz [A] |
0.18 A |
| Fan diameter [mm] |
254 mm |
| Fan power consumption @ 50Hz [W] |
13 W |
| Fan power output @ 50Hz [W] |
17 W |
| Fan power supply [V/Ph/Hz] |
230/1/50 |
| Fan voltage @ 50Hz (max) [V] [Max] |
253 V |
| Fan voltage @ 50Hz (max) [V] [Min] |
207 V |
| Liquid line connection [mm] |
6 mm |
| Model number |
OP-MCHC010SCA01G |
| No. of phases (compressor) |
1 |
| No. of phases (fan) |
1 |
| Number of fans |
1 |
| Receiver approval |
CE |
| Receiver volume [L] |
1.1 L |
| Refrigerant |
R404A
R507 |
| RLA |
3.9 A |
| Segment usage |
Medium Back Pressure |
| Suction connection size [mm] |
8 µm |
| Type |
Optyma™ |
| Type designation |
Condensing Units |
| Version |
A01 |
| Voltage 50Hz [V] |
207 V |
| Voltage 50Hz [V] [Max] |
253 V |

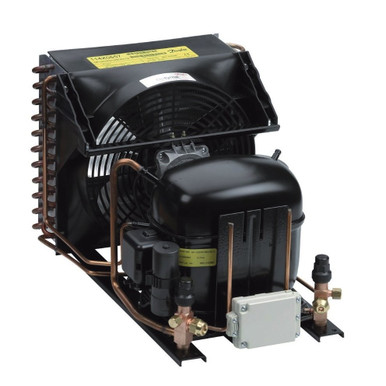

Type designation: Condensing Units, Type: Optyma™, Model number: OP-MCHC010SCA01G, Refrigerant: R404A; R507, Segment usage: Medium Back Pressure, No. of phases (compressor): 1
