Description

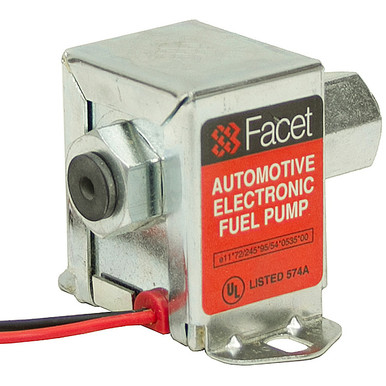

12 VDC ELECTRONIC FUEL PUMP
Brand new, FACET model 40185 Cube solid state electronic fuel pump. Self priming and self regulating fuel pump that is designed for use on all low and high pressure carburetor equipped automobiles, vans, trucks, generators, agricultural, gasoline and diesel engines, marine, construction and utility equipment.
Internal check valve stops the fuel from going back to the tank when the pump is turned off and it also increases dry lift.
Ground positive or negative, reverse polarity protection. Compatible with gasoline, diesel, biodiesel, E85, blended alcohol and fuel additives.
SPECIFICATIONS
- Brand Facet
- Model Number 40185
- Voltage 12 Volts DC
- Amps 1.6
- Flow 32 GPH
- Pressure 9-11.5 PSI (Min-Max)
- Ports 1/8″ NPT female
- Positive Lead Bare wire
- Negative Lead Ring terminal
- Operating Ambient Temperature Range -40°F to 180°F
- Mount Two 0.28″ bolt holes on 2.53″ centers
- Max. Lift From Bottom of Fuel Tank 96″
- Internal Check Valve Yes
- Positive Shut-off Valve No
- Mounting Orientation The fuel pump should be mounted with the outlet above the inlet
- Size3″ x 3-1/4″ x 2-3/8″
- Shpg. 2 lbs.
NOT INTENDED FOR AIRCRAFT USE
WARNING: Facet and Purolator fuel pumps should not be used in aircraft
as they are not designed, tested or manufactured for any aircraft applications.
