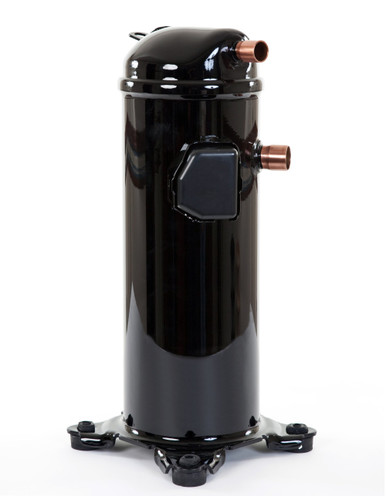

121U9016 Danfoss Scroll compressor, HHP026T5LP6

121U9016 Danfoss Scroll compressor, HHP026T5LP6

Original price was: $1,872.11.Current price is: $374.42.

SKU: 121U9016 Category: Tag:

Description

Product details

Gross weight 33 kg
Net weight 31.61 kg
EAN 5702428378758
Gross weight 33 kg
Net weight 31.61 kg
EAN 5702428378758



Approval standard CE
UL
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] 1.51 Ohm
Brand technique Scroll compressor
Capacity control Fixed speed
Capacity of capacitor A 70 µF
Capacity of capacitor B 145-175 µF
Colour Black
Compressor power supply [V/Ph/Hz] 220-240/1/50
Configuration code Single
Connection type Brazed
HHP026T5
Diameter [mm] 165 mm
Discharge connection height [mm] 379 mm
Discharge connection pipe size [in] 1/2 in
Discharge connection size [in] 1/2 in
Drawing number 0XC6301B-2
Economizer No
Fitting standard ODF
Frequency [Hz] 50
Gauge port HP None
Gauge port LP None
Gaz equalization None
Glass mounting None
High value of nominal voltage at 50Hz [V] 240 V
High value of nominal voltage at 60Hz [V] 0 V
High value of voltage range at 50Hz [V] 264 V
High value of voltage range at 60Hz [V] 0 V
IP protection class IP22
Length [mm] 239 mm
Low value of nominal voltage at 50Hz [V] 220 V
Low value of nominal voltage at 60Hz [V] 0 V
Low value of voltage range at 50Hz [V] 198 V
Low value of voltage range at 60Hz [V] 0 V
LRA 97 A
Main winding resistance for single-phase compressors [Ohm] 0.69 Ohm
MCC 27 A
Model number HHP026T5LP6
Motor protection Internal overload protector
Number of starts per hour [Max] 12
Oil charge [L] 1.06 L
Oil equalization None
Oil reference 160HV
Oil type PVE
Packing format Single pack/pallet
Packing quantity 6
Phase 1
Power connections Spade
Refrigerant R407C
Refrigerant charge [kg] [Max] 3.63 kg
Relief valve Yes
RLA 19.3 A
Rotational speed at 50Hz [rpm] 2900 rpm
Rotational speed at 60Hz [rpm] 0 rpm
Segment usage Heating
Shipped instructions Installation instructions
Shipped mounting Mounting kit with grommets and sleeves
Shipped oil Initial oil charge
Suction connection height [mm] 250 mm
Suction connection pipe size [in] 3/4 in
Suction connection size [in] 3/4 in
Swept volume [cm3] 57 cm3
Technology Scroll
Total height [mm] 413 mm
Type HHP
Type designation Compressor
Viscosity [cP] 32 cP
Voltage of capacitor A [V] 370 V
Voltage of capacitor B [V] 250 V
Width [mm] 239 mm
Approval standard CE
UL
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] 1.51 Ohm
Brand technique Scroll compressor
Capacity control Fixed speed
Capacity of capacitor A 70 µF
Capacity of capacitor B 145-175 µF
Colour Black
Compressor power supply [V/Ph/Hz] 220-240/1/50
Configuration code Single
Connection type Brazed
HHP026T5
Diameter [mm] 165 mm
Discharge connection height [mm] 379 mm
Discharge connection pipe size [in] 1/2 in
Discharge connection size [in] 1/2 in
Drawing number 0XC6301B-2
Economizer No
Fitting standard ODF
Frequency [Hz] 50
Gauge port HP None
Gauge port LP None
Gaz equalization None
Glass mounting None
High value of nominal voltage at 50Hz [V] 240 V
High value of nominal voltage at 60Hz [V] 0 V
High value of voltage range at 50Hz [V] 264 V
High value of voltage range at 60Hz [V] 0 V
IP protection class IP22
Length [mm] 239 mm
Low value of nominal voltage at 50Hz [V] 220 V
Low value of nominal voltage at 60Hz [V] 0 V
Low value of voltage range at 50Hz [V] 198 V
Low value of voltage range at 60Hz [V] 0 V
LRA 97 A
Main winding resistance for single-phase compressors [Ohm] 0.69 Ohm
MCC 27 A
Model number HHP026T5LP6
Motor protection Internal overload protector
Number of starts per hour [Max] 12
Oil charge [L] 1.06 L
Oil equalization None
Oil reference 160HV
Oil type PVE
Packing format Single pack/pallet
Packing quantity 6
Phase 1
Power connections Spade
Refrigerant R407C
Refrigerant charge [kg] [Max] 3.63 kg
Relief valve Yes
RLA 19.3 A
Rotational speed at 50Hz [rpm] 2900 rpm
Rotational speed at 60Hz [rpm] 0 rpm
Segment usage Heating
Shipped instructions Installation instructions
Shipped mounting Mounting kit with grommets and sleeves
Shipped oil Initial oil charge
Suction connection height [mm] 250 mm
Suction connection pipe size [in] 3/4 in
Suction connection size [in] 3/4 in
Swept volume [cm3] 57 cm3
Technology Scroll
Total height [mm] 413 mm
Type HHP
Type designation Compressor
Viscosity [cP] 32 cP
Voltage of capacitor A [V] 370 V
Voltage of capacitor B [V] 250 V
Width [mm] 239 mm

Refrigerant: R407C, Segment usage: Heating, Compressor power supply [V/Ph/Hz]: 220-240/1/50

Product details

Gross weight 33 kg
Net weight 31.61 kg
EAN 5702428378758
Gross weight 33 kg
Net weight 31.61 kg
EAN 5702428378758



Approval standard CE
UL
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] 1.51 Ohm
Brand technique Scroll compressor
Capacity control Fixed speed
Capacity of capacitor A 70 µF
Capacity of capacitor B 145-175 µF
Colour Black
Compressor power supply [V/Ph/Hz] 220-240/1/50
Configuration code Single
Connection type Brazed
HHP026T5
Diameter [mm] 165 mm
Discharge connection height [mm] 379 mm
Discharge connection pipe size [in] 1/2 in
Discharge connection size [in] 1/2 in
Drawing number 0XC6301B-2
Economizer No
Fitting standard ODF
Frequency [Hz] 50
Gauge port HP None
Gauge port LP None
Gaz equalization None
Glass mounting None
High value of nominal voltage at 50Hz [V] 240 V
High value of nominal voltage at 60Hz [V] 0 V
High value of voltage range at 50Hz [V] 264 V
High value of voltage range at 60Hz [V] 0 V
IP protection class IP22
Length [mm] 239 mm
Low value of nominal voltage at 50Hz [V] 220 V
Low value of nominal voltage at 60Hz [V] 0 V
Low value of voltage range at 50Hz [V] 198 V
Low value of voltage range at 60Hz [V] 0 V
LRA 97 A
Main winding resistance for single-phase compressors [Ohm] 0.69 Ohm
MCC 27 A
Model number HHP026T5LP6
Motor protection Internal overload protector
Number of starts per hour [Max] 12
Oil charge [L] 1.06 L
Oil equalization None
Oil reference 160HV
Oil type PVE
Packing format Single pack/pallet
Packing quantity 6
Phase 1
Power connections Spade
Refrigerant R407C
Refrigerant charge [kg] [Max] 3.63 kg
Relief valve Yes
RLA 19.3 A
Rotational speed at 50Hz [rpm] 2900 rpm
Rotational speed at 60Hz [rpm] 0 rpm
Segment usage Heating
Shipped instructions Installation instructions
Shipped mounting Mounting kit with grommets and sleeves
Shipped oil Initial oil charge
Suction connection height [mm] 250 mm
Suction connection pipe size [in] 3/4 in
Suction connection size [in] 3/4 in
Swept volume [cm3] 57 cm3
Technology Scroll
Total height [mm] 413 mm
Type HHP
Type designation Compressor
Viscosity [cP] 32 cP
Voltage of capacitor A [V] 370 V
Voltage of capacitor B [V] 250 V
Width [mm] 239 mm
Approval standard CE
UL
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] 1.51 Ohm
Brand technique Scroll compressor
Capacity control Fixed speed
Capacity of capacitor A 70 µF
Capacity of capacitor B 145-175 µF
Colour Black
Compressor power supply [V/Ph/Hz] 220-240/1/50
Configuration code Single
Connection type Brazed
HHP026T5
Diameter [mm] 165 mm
Discharge connection height [mm] 379 mm
Discharge connection pipe size [in] 1/2 in
Discharge connection size [in] 1/2 in
Drawing number 0XC6301B-2
Economizer No
Fitting standard ODF
Frequency [Hz] 50
Gauge port HP None
Gauge port LP None
Gaz equalization None
Glass mounting None
High value of nominal voltage at 50Hz [V] 240 V
High value of nominal voltage at 60Hz [V] 0 V
High value of voltage range at 50Hz [V] 264 V
High value of voltage range at 60Hz [V] 0 V
IP protection class IP22
Length [mm] 239 mm
Low value of nominal voltage at 50Hz [V] 220 V
Low value of nominal voltage at 60Hz [V] 0 V
Low value of voltage range at 50Hz [V] 198 V
Low value of voltage range at 60Hz [V] 0 V
LRA 97 A
Main winding resistance for single-phase compressors [Ohm] 0.69 Ohm
MCC 27 A
Model number HHP026T5LP6
Motor protection Internal overload protector
Number of starts per hour [Max] 12
Oil charge [L] 1.06 L
Oil equalization None
Oil reference 160HV
Oil type PVE
Packing format Single pack/pallet
Packing quantity 6
Phase 1
Power connections Spade
Refrigerant R407C
Refrigerant charge [kg] [Max] 3.63 kg
Relief valve Yes
RLA 19.3 A
Rotational speed at 50Hz [rpm] 2900 rpm
Rotational speed at 60Hz [rpm] 0 rpm
Segment usage Heating
Shipped instructions Installation instructions
Shipped mounting Mounting kit with grommets and sleeves
Shipped oil Initial oil charge
Suction connection height [mm] 250 mm
Suction connection pipe size [in] 3/4 in
Suction connection size [in] 3/4 in
Swept volume [cm3] 57 cm3
Technology Scroll
Total height [mm] 413 mm
Type HHP
Type designation Compressor
Viscosity [cP] 32 cP
Voltage of capacitor A [V] 370 V
Voltage of capacitor B [V] 250 V
Width [mm] 239 mm
