Description

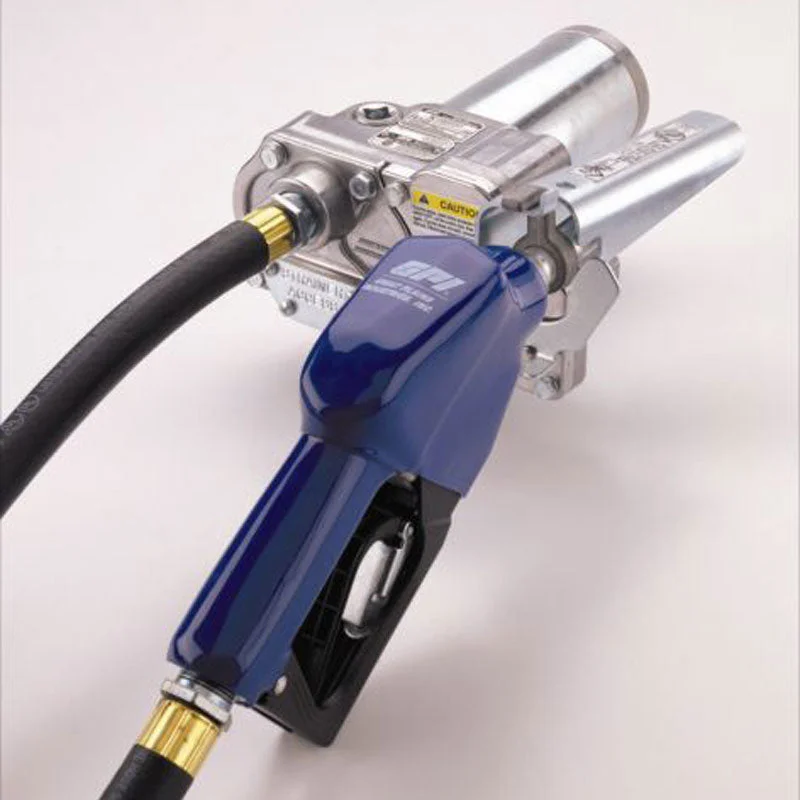

15 GPM 12V Fuel Transfer Pump with Automatic Nozzle
Recommended Fuels:
Diesel (up to B20) | Gasoline (up to E15) | Kerosene
The M-150S-AU is the industrys best-selling 12V fuel transfer pump, trusted for its long run times and consistent performance year after year. Delivering flow rates up to 15 GPM (57 L/min), this durable pump provides reliable flow rates with minimal downtime.
Durable Aluminum Housing: Precision diecast aluminum construction keeps the pump lightweight and dependable, minimizing strain on the tank bung. A powder-coated motor can and corrosion-resistant housing ensure long-term performance in demanding environments.
Rotary Gear Design: Fewer moving parts mean reduced friction, less wear, and longer life compared to vane-style pumps. Over-engineered for reliability, GPIs rotary gear system requires less maintenance and delivers consistent flow.
Fast & Easy Installation: The 12V DC motor powers efficient delivery of fuel at up to 15 GPM. GPIs innovative spin collar allows for quick, hassle-free installation on your tank.
15 GPM 12V Fuel Transfer Pump with Manual Nozzle Features
- Lockable nozzle holder deters theft and protects your equipment
- Strainer access for quick, easy maintenance
- Extended pump life means more operating hours and greater overall value
- Designed for permanent mounting on vented storage tanks
| 15 GPM 12V Fuel Transfer Pump Specifications | |
|---|---|
| Max. Flow Rate | 15 GPM (57 L/min) |
| Voltage Input | 12V (DC) |
| Horsepower | 0.20 |
| Technology | Rotary Gear |
| Amps Rated | 18 amps |
| Duty Cycle | 30 min on / 30 min off |
| Power Cord | 18 ft. (5.5m), 12/2 AWG, Factory Installed |
| Max. Discharge Pressure | 15 PSI (1.03 bar) |
| Operating Temperature | -20 F to 125 F (-29 C to 52 C) |
| Suction Lift | Up to 5 ft. (1.5m) at Sea Level 70 F (21.1 C) |
| Discharge Lift | Up to 15 ft. (4.5m) at Sea Level 70 F (21.1 C) |
| Pump Housing Material | Corrosion-Resistant Diecast Aluminum |
| Wetted Materials | Acetal | Aluminum | FKM | NBR | PPS | Stainless Steel |
| Mounting Type/Thread | Spin Collar, 2 in. MNPT |
| Suction Pipe | Polypropylene, Telescoping 15 to 40 in. x 1 in. MNPT |
| Inlet | 1 in. FNPT |
| Outlet | 3/4 in. FNPT |
| Dispensing Hose | 12 ft. (3.7m) x 3/4 in. MNPT |
| Nozzle | 3/4 in. FNPT Inlet, Automatic Shut-off, Unleaded |
| Nozzle Holder Type | Lockable |
| What’s in the Box | M-150S-AU Fuel transfer pump w/spin collar, Automatic shut-off unleaded nozzle, Lockable nozzle holder, Dispensing hose, Factory-installed power cord, Telescoping suction pipe, Tank adapter, Fuse assembly, Owners manual |
| Warranty | 2-yr pump warranty |
| UPC | 031401150612 |
| Approvals | cULus Motor Listed for Hazardous Locations Class I, Division 2, Group D USA and Canada |
