Description

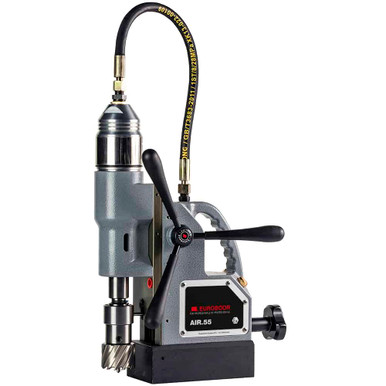

The portable Euroboor AIR.55 pneumatic drilling machine is equipped with an air-powered, spark-free motor and a non-electric, permanent magnet base. Connected to a compressor, it can be used for drilling on flat workpieces where electrical machines are less convenient or not allowed, especially in areas and spaces with potentially explosive atmospheres, such as offshore and petrochemical industries, as well as mining.Single operation knob for magnet and motor with deadman’s’ controlAlso available with permanent tube magnet for both pipe and flat materialPermanent, non-electric monobloc magnet systemNo loss of magnetic grip in case of electric power cuts or fluctuationsPowerful hold, even on thinner steel thicknessesAnnular cuttingØ 7/16″ – 2 1/16″ (HSS)Ø 7/16″ – 2 3/16″ (TCT)Twist drillingØ 1/16″ – 15/16″CountersinkingØ 7/16″ – 2 3/16″Length14 15/16″Width9 5/8″Height24 3/16″ 27 3/4″Stroke6 9/16″Weight*36.4 lbsMagnet7 3/16″ x 3 15/16″ x 2 3/16″Magnetic force1,984 lbsSpeed (no load)380 rpmSpindle (Weldon)MT3 3/4″Power sourceAir, min. 6.3 bar,max. 8 bar,consumption 1.1 m³/min
View the Spec Sheet for This Item
View the Operation Manual for This Item
