2.76"(70mm) x 15.75"(400mm) x 1.97"(50mm) Double Acting Hydraulic Cylinder Volvo 14245975

2.76″(70mm) x 15.75″(400mm) x 1.97″(50mm) Double Acting Hydraulic Cylinder Volvo 14245975

Original price was: $89.95.Current price is: $26.99.

SKU: 904837 Category:

Description

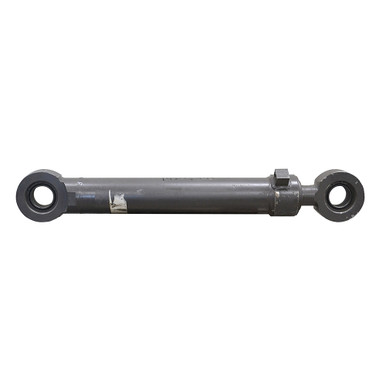

2.76″(70mm) x 15.75″(400mm) x 1.97″(50mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. VOLVO double acting hydraulic cylinder. Numbers on cylinder 14245975.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 2.76″(70mm) x 15.75″(400mm)
  • Barrel Thickness 0.3″
  • Gland Retainer Wire ring gland retainer (round)
  • Pressure 3000 PSI
  • Rod Dia. 1.97″(50mm)
  • Ports BSPP 4
  • Retracted Length 27.75″
  • Gland Face to Rod Pin Center 4″
  • Shpg. 59 lbs.
END MOUNTINGS
  • Rod End Swivel Eye
  • Width 1.82″
  • Pin-Center-To-Swivel Eye-End 2.32″
  • Swivel Eye Width 1.375″
  • Pin Hole 1.97″(50mm)
  • Base End Swivel Eye
  • Width 1.82″
  • Pin-Center-To-Swivel Eye-End 2.38″
  • Swivel Eye Width 1.375″
  • Pin Hole 1.97″(50mm)
