Description
Steel Round Horizontal Skids are UL142 rated and built both in single and double walled configurations for the storage and dispense of lubricants, oils and chemicals.

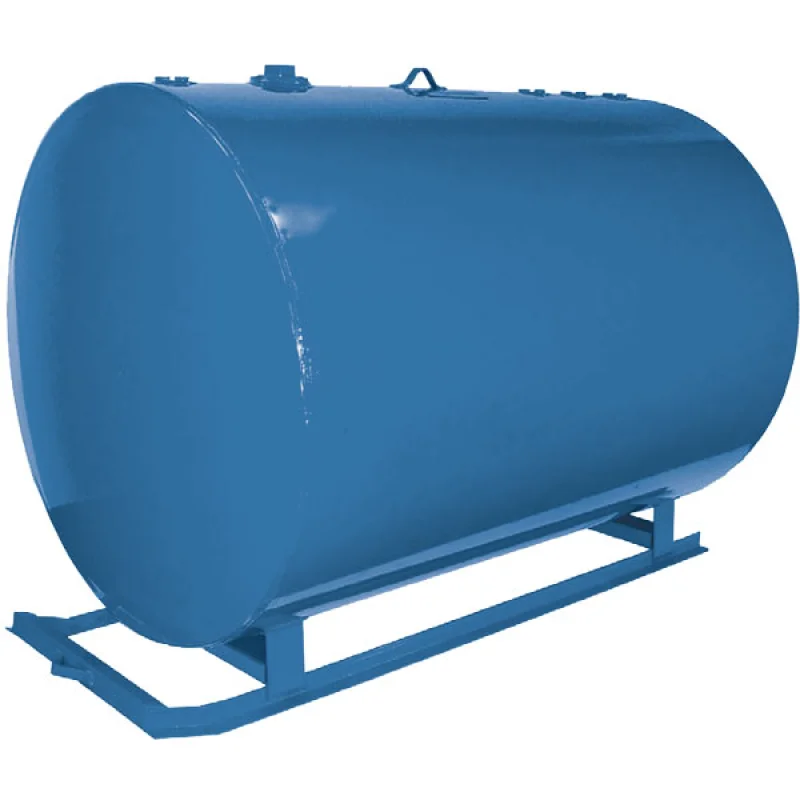

Each double walled Steel Round Skid Tank is painted blue and featuresa universal hose reel mounting plate, and has a2″ pipe at the bottom of the tank, with an elbow to allow for insertion of a gauge to inspect the interstitial space on a double wall steel skid tank.These steel round skids utilize the latest welding technology and testing standards to ensure that they are of highest quality tanks available.
| Tank Model | Gallon Capacity | Tank Dimensions | Tank Openings |
|---|---|---|---|
| 280SKDW | 264 Gallons | 36″Dia x 60″L | (4) 2″ Top NPT, (2) 4″ NPT Emergency Vent, (1) 2″ Monitoring Pipe |
| 500SKDW | 509 Gallons | 48″Dia x 65″L | (5) 2″ Top NPT, (2) 4″ NPT Emergency Vent, (1) 2″ Monitoring Pipe |
| 1000SKDW | 1,018 Gallons | 48″Dia x 130″L | (5) 2″ Top NPT, (1) 4″ NPT Emergency Vent, (2) 6″ NPT Emergency Vent, (1) 2″ Monitoring Pipe |
Download 264 Gallon Round Horizontal Skid Tank, Double Wall Drawing
