Description

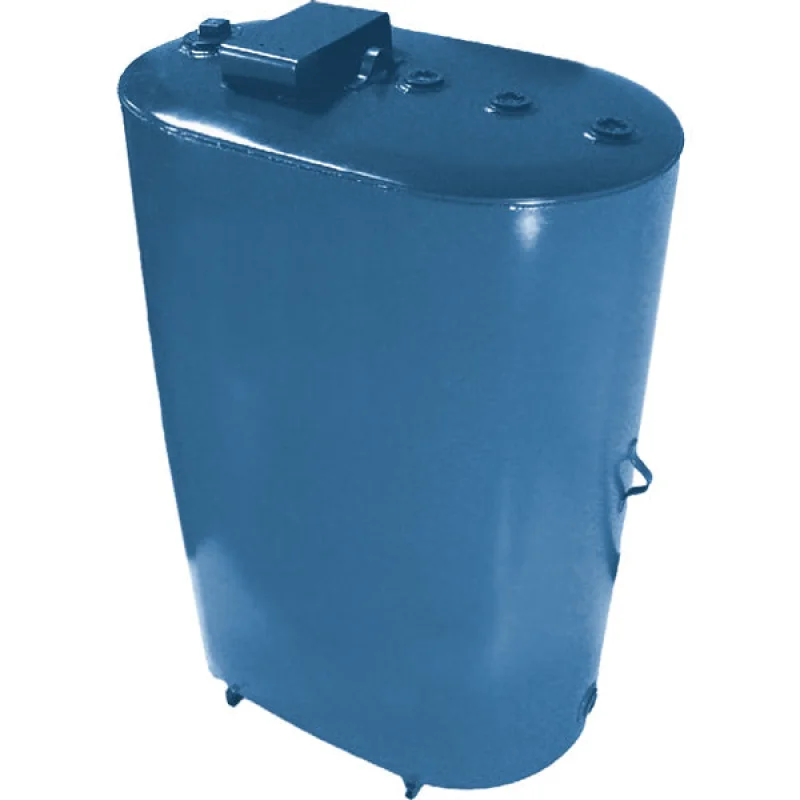

Steel Obround Vertical Tanks are UL142 rated and built both in single and double walled configurations for the storage and dispense of lubricants, oils and chemicals.
Each double walled vertical Steel Obround Tank is painted blue and featuresa universal hose reel mounting plate, and hasa 2″ monitor opening into the interstitial space between the inner and outer tank to check for leaks.These steel obround tanks utilize the latest welding technology and testing standards to ensure that they are of highest quality tanks available.
| Tank Model | Gallon Capacity | Tank Dimensions | Tank Openings |
|---|---|---|---|
| 275VDW | 275 Gallons | 44″W x 27″L x 60″H | (4) 2″ Top NPT, (2) 4″ NPT Emergency Vent, (1) 2″ Interstitial Opening |
| 330VDW | 330 Gallons | 44″W x 27″L x 72″H | (4) 2″ Top NPT, (2) 4″ NPT Emergency Vent, (1) 2″ Interstitial Opening |
Download 275 Gallon Obround Vertical Tank, Double Wall Drawing
