Description

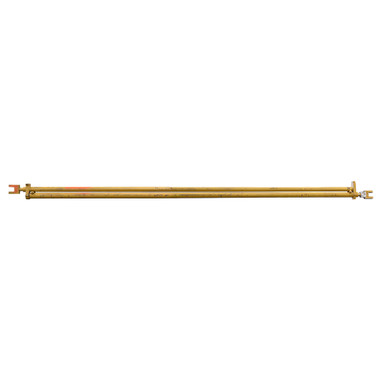

3″/2.5″ x 190″ (BOTH) x 2.25″/2″ DOUBLE ACTING TANDEM HYDRAULIC CYLINDER
New, welded cylinders with thread-in gland caps. Larger bore cylinder has 1/2″ dia. extend port and 3/8″ dia. retract port in rod end, both on manifold pad measuring 4″ x 3-7/8″ with four 1/4″-20 bolts on 3-1/4″ x 3″ centers. Cylinders operate independently in opposing directions, each has 190″ stroke. Four 1/2″ dia. bolts at each base end connect cylinders, can be easily separated.
| SPECIFICATIONS |
- Double Acting, Tandem
- Bore x Stroke 3″ x 190″, 2.5″ x 190″
- Barrel Thickness 1/4″ (both)
- Pressure 2000 PSI max.
- Rod Dia. 2-1/4″, 2″ (both hollow)
- Rod Thickness 3/8″, 5/16″
|
- Ports SAE 8, See paragraph
- Retracted Length 232-1/2″
- Shpg. 700 lbs.
|
| END MOUNTINGS |
|
- Rod End (Larger Cylinder) Clevis
- Outside Width 5-5/8″
- Inside Width 2-11/16″
- Throat Depth 3-3/4″
- Pin Hole 1-1/4″
- Rod End (Smaller Cylinder) Clevis
- Outside Width 5-9/16″
- Inside Width 2-5/8″
- Throat Depth 3-3/4″
- Pin Hole 1-1/4″
|
- Rod End (both) Thru-Hole
- Width 5-9/16″
- Pin Center to Rod End 5-1/4″
- Pin Hole 1-1/4″
|
