Description

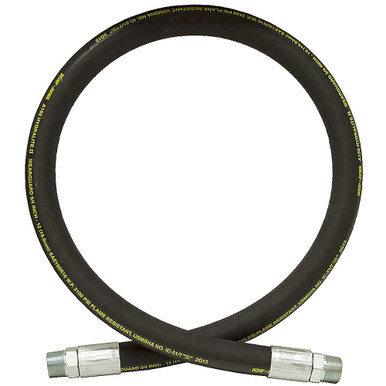

3/4″ X 120″ 3/4″ NPTM X 3/4″ NPTM 3000 PSI HYDRAULIC HOSE
Brand new, two-wire braided SAE 100R16 hydraulic hose assembly. Assembled in USA from NRP JONES hose stock and USA-made plated steel fittings. Oil and abrasion resistant Wearguard® neoprene jacket, MSHA approved. Oil resistant nitrile tube. Length measured from end to end.
SPECIFICATIONS
- Hose Type SAE 100R16 HydraLite II, Two-Wire Braided
- Overall Length 120″
- Inside Hose Diameter 3/4″
- Outside Jacket Diameter 1.10″
- Fittings 3/4″ NPTM
- Minimum Bend Radius 4.75″
- Temperature Range -40° to 250° F
- Working Pressure 3000 PSI
- Burst Pressure 12400 PSI
- Shpg. 9 Lbs.
