Description

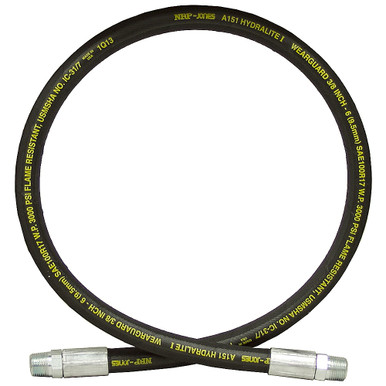

3/8″ X 108″ 3/8″ NPTM X 3/8″ NPTM 3000 PSI HYDRAULIC HOSE
Brand new, one-wire braided SAE 100R17 hydraulic hose assembly. Assembled in USA from NRP JONES hose stock and USA-made plated steel fittings. Oil and abrasion resistant Wearguard® neoprene jacket, MSHA approved. Oil resistant nitrile tube. Length measured from end to end.
SPECIFICATIONS
- Hose Type SAE 100R17 HydraLite I, One-Wire Braided
- Overall Length 108″
- Inside Hose Diameter 3/8″
- Outside Jacket Diameter 0.68″
- Fittings 3/8″ NPTM
- Minimum Bend Radius 2.50″
- Temperature Range -40° to 250° F
- Working Pressure 3000 PSI
- Burst Pressure 12000 PSI
- Shpg. 5 Lbs.
| 3/8″ Single Wire Hydraulic Hose Clamp A2-17.2-A | 902263 |
| 3/8″ Single Wire Dual Hydraulic Hose Clamp AT2-17.2-A | 902272 |
