Description

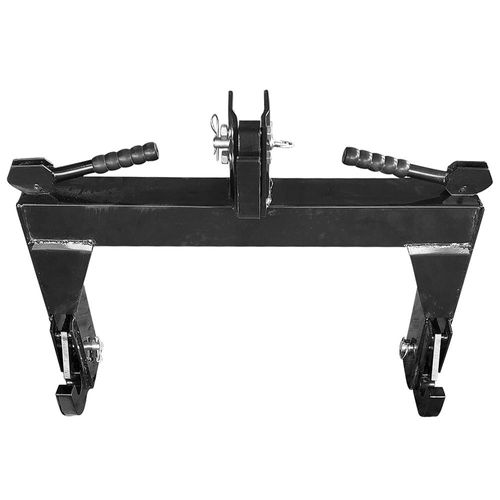

This quick hitch offers a variety of adjustable heights to best fit your category 1 tractor. The adjustable top link bracket includes 7/8 inch mounting pins. It may operate at a maximum horsepower of 50, and is constructed from heavy duty steel for excellent longevity. The overall dimensions measure 30-1/4 inch width x 23 inch height x 8-1/4 inches front to back. The lift arm spacing measures 27-1/4 inches with a ball bracket lift of 26 inches.
Specifications:
- 3-Point Quick Hitch
- Category 1
- Overall dimensions: 30-1/4 inch width x 23 inch height x 8-1/4 inches front to back
- Lift arm spacing: 27-1/16 inches
- Ball bracket width: 26 inches
- Distance between lower lift arms and top link: Minimum – 15 inches, Maximum: 18-1/4 inches
- Construction: Steel
- Lift Capacity: 2,000 lbs.
- Adjustable top link
- Maximum tractor Horsepower: 50
- Mounting pins: 7/8 inch
- Will not work with 65067 3-Point Cultivator
- Use bushing kit 77869 not included.
- Some non Category 1 implements may require an adapter bracket. Use61369 Top Hitch Adapter Bracket or80717 Adapter Bracket for this 3-point quick hitch, both sold separately
- Replaces Kodiak KDK50-0487 and other brands
