4.93"(125mm) x 48.625"(1235.08mm) x 3.14"(80mm) Double Acting Hydraulic Cylinder H006510 77687

4.93″(125mm) x 48.625″(1235.08mm) x 3.14″(80mm) Double Acting Hydraulic Cylinder H006510 77687

Original price was: $399.95.Current price is: $79.99.

SKU: 904528 Category:

Description

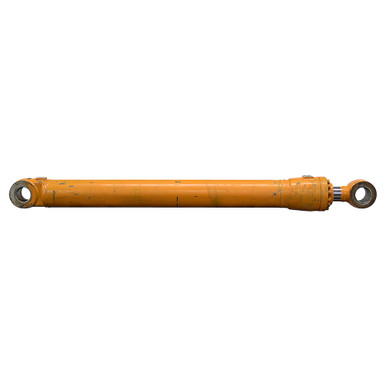

4.93″(125mm) x 48.625″(1235.08mm) x 3.14″(80mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder H006510 77687.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 4.93″(125mm) x 48.625″(1235.08mm)
  • Barrel Thickness 0.475″
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI
  • Rod Dia. 3.14″(80mm)
  • Ports 4 bolt 3/4″ code 61 flange size 12
  • Retracted Length 70.5″
  • Gland Face to Rod Pin Center 6.25″
  • Shpg. 425 lbs.
END MOUNTINGS
  • Rod End Tang
  • Thickness, Max 3.92″
  • Pin-Center-To-Tang-End 2.87″
  • Pin Hole 3.16″(80mm)
  • Base End Tang
  • Thickness, Max 4.3″
  • Pin-Center-To-Tang-End 3″
  • Pin Hole 3.16″(80mm)
