Description

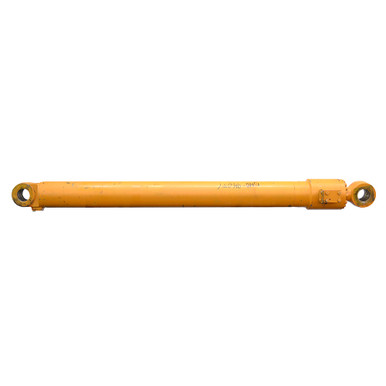

5.51″(140mm) x 63.375″(1610mm) x 3.54″(90mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. SAMSUNG double acting hydraulic cylinder. Numbers on cylinder 1040-94051.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 5.51″(140mm) x 63.375″(1610mm)
- Barrel Thickness 0.611″
- Gland Retainer Bolt on
- Pressure 3000 PSI
- Rod Dia. 3.54″(90mm)
|
- Extend Port Four M10-1.5 bolt metric flange w/ 1.579″ x 1.774″ bolt centers and 0.698 port hole
- Retract Port 4 bolt 1″ code 61 flange size 16
- Retracted Length 85.875″
- Gland Face to Rod Pin Center 4.875″
- Shpg. 661 lbs.
|
| END MOUNTINGS |
- Rod End Tang
- Width 3.93″
- Pin-Center-To-Tang-End 3.39″
- Pin Hole 3.15″(80mm)
|
- Base End Tang
- Width 3.93″
- Pin-Center-To-Tang-End 3.17″
- Pin Hole 3.15″(80mm)
|
