5.9"(150mm) x 54.875"(1394mm) x 3.94"(100mm) Double Acting Hydraulic Cylinder Koehring 7314033

5.9″(150mm) x 54.875″(1394mm) x 3.94″(100mm) Double Acting Hydraulic Cylinder Koehring 7314033

Original price was: $599.95.Current price is: $119.99.

SKU: 904643 Category:

Description

5.9″(150mm) x 54.875″(1394mm) x 3.94″(100mm) DA HYD CYL

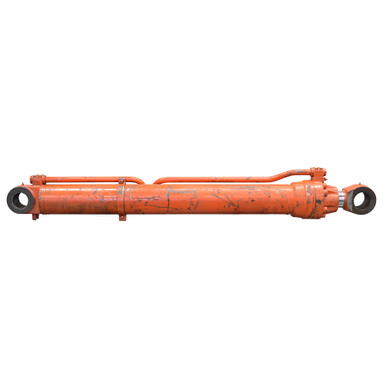

Unused old inventory. Double acting hydraulic cylinder. Cylinder has bleeders on rod and base ends. Cylinder also has cushion valves on both ends. KOEHRING numbers on cylinder 7314033.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke5.9″(150mm) x 54.875″(1394mm)
  • Barrel Thickness 0.529″
  • Gland Retainer Bolt on gland
  • Pressure3000 PSI
  • Rod Dia. 3.94″(100mm)
  • PortsBSPP 1″
  • Retracted Length78″
  • Gland Face to Rod Pin Center5.5″
  • Shpg. 700 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 4.70″
  • Pin-Center-To-Tang-End 3.31″
  • Pin Hole 3.94″(100mm)
  • Base End Tang
  • Width 4.71″
  • Pin-Center-To-Tang-End 3.10″
  • Pin Hole 3.54″(90mm)
