Description

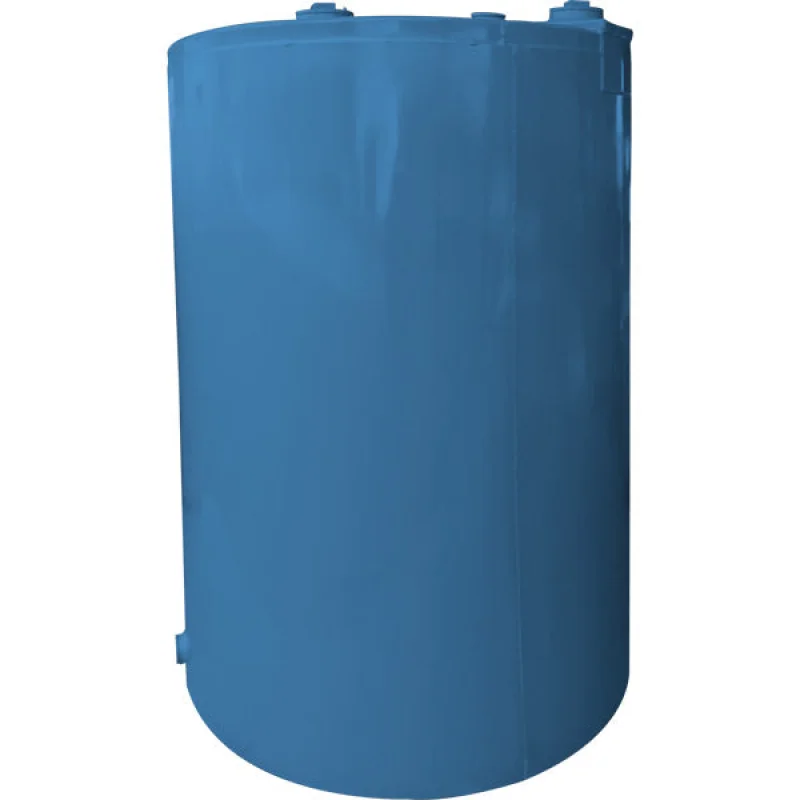

Steel Round Vertical Tanks are UL142 rated and built both in single and double walled configurations for the storage and dispense of lubricants, oils and chemicals.
Each single walled vertical Steel Round Tank is painted blue and featuresa universal hose reel mounting plate, and hasa 2″ bottom drain.These steel round tanks utilize the latest welding technology and testing standards to ensure that they are of highest quality tanks available.
| Tank Model | Gallon Capacity | Tank Dimensions | Tank Openings |
|---|---|---|---|
| 500V | 500 Gallons | 48″DIA x 65″H | (5) 2″ Top NPT, (1) 4″ NPT Emergency Vent, (1) 2″ Bottom Drain |
| 1000V | 1,0000 Gallons | 64″DIA x 72″H | (5) 2″ Top NPT, (1) 6″ NPT Emergency Vent, (1) 2″ Bottom Drain |
Download 500 Gallon Round Vertical Tank, Single Wall Drawing
