Description
Steel Round Horizontal Skids are UL142 rated and built both in single and double walled configurations for the storage and dispense of lubricants, oils and chemicals.
Each single walled Steel Round Skid Tank is painted blue and featuresa universal hose reel mounting plate, and has a 2″ drain. These steel round tanks utilize the latest welding technology and testing standards to ensure that they are of highest quality tanks available.
| Tank Model | Gallon Capacity | Tank Dimensions | Tank Openings |
|---|---|---|---|
| 280SK | 264 Gallons | 36″Dia x 60″L | (4) 2″ Top NPT, (1) 4″ NPT Emergency Vent, (1) 2″ Bottom Drain |
| 500SK | 509 Gallons | 48″Dia x 65″L | (4) 2″ Top NPT, (1) 4″ NPT Emergency Vent, (1) 2″ Bottom Drain |
| 1000SK | 1,018 Gallons | 48″Dia x 130″L | (6) 2″ Top NPT, (1) 6″ NPT Emergency Vent, (1) 2″ Bottom Drain |

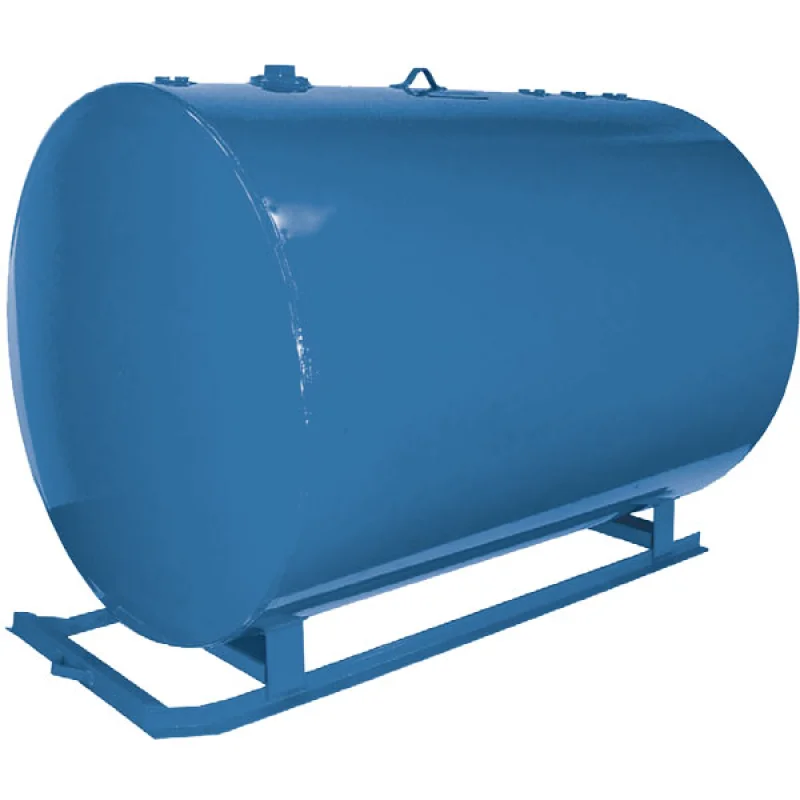

Download 509 Gallon Round Horizontal Skid Tank, Single Wall Drawing
