Description

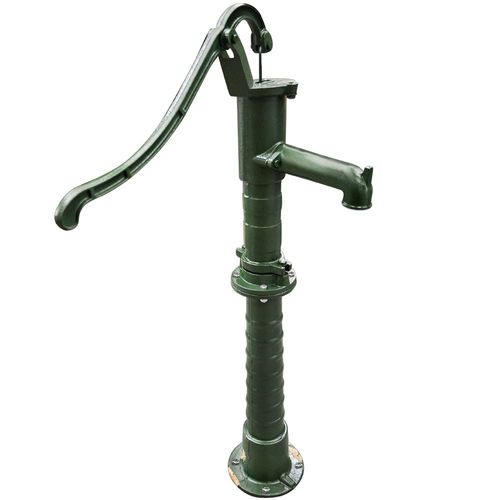

This cast iron water pump with stand is easy to install and is very durable. Pitcher pumps are not limited to just drawing water, they can also be used as an ornament in the yard or garden. This tall shallow well pitcher pump is hand operated and easy to use by moving the 25″ handle up and down. The pumps can be mounted by using the holes in the bottom flange by bolting it to a staple surface, typically a concrete pad, or a wooden platform. The flange provides stability during the pumping motion.
Specifications
- Material: cast iron
- Color: green
- Maximum pressure head: 26′
- Length of handle: 25″
- Water pump
- Height: 55″
- Hardware is included
- Measurement of the water pump: 25.6″ x 15.7″ x 5.9″ (connection is 1-1/4″ female threaded fitting)
- Measurement for the stand: 26″ x 9″ x 9″ ( top diameter; 6.3″ and base diameter: 9″)
- Not suitable for drinking water
Replacement Parts noted below:
- 83788 – Leather Ring
- 83789 – Rubber Ring (2)
- 83790 – Rubber Ring (19)
