Description

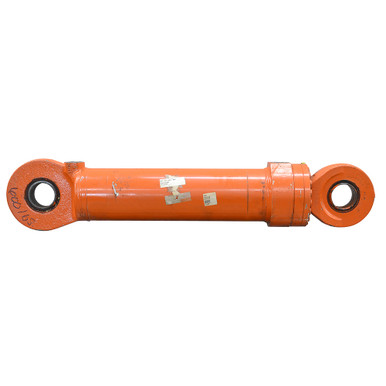

7.08″(180mm) x 23″(585mm) x 4.13″(105mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. ATLAS double acting hydraulic cylinder. Numbers on cylinder 3131559.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 7.08″(180mm) x 23″(585mm)
- Barrel Thickness 0.74″
- Gland Retainer Bolt on
- Pressure 3000 PSI
- Rod Dia. 4.13″(105mm)
|
- Ports 4 bolt 1-1/4″ code 62 flange size 20
- Retracted Length 48.375″
- Gland Face to Rod Pin Center 6″
- Shpg. 653 lbs.
|
| END MOUNTINGS |
- Rod End Swivel Eye
- Width 2.77″
- Pin-Center-To-Swivel Eye-End 5.34″
- Swivel Eye Width 2.75″
- Pin Hole 3.94″(100mm)
|
- Base End Swivel Eye
- Width 2.79″
- Pin-Center-To-Swivel Eye-End 5.92″
- Swivel Eye Width 3.375″
- Pin Hole 3.94″(100mm)
|
