Description

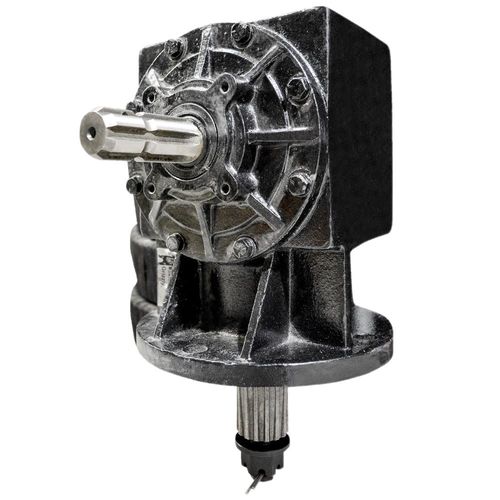

Gearboxes work to administer a transfer of speed and torque through their internal gear rotation, helping the overall performance of your rotary cutter. This RW-710-6S gearbox operates at 75-90 HP. The housing is constructed from durable ductile iron and the input shaft measures 1-3/8 in., with 6 splines. It has a gear ratio measuring 1:1.46, and is designed for use with 5 ft., 6 ft., and 7 ft. rotary cutters.
Specifications
- Gearbox RW-710-6S
- Replaces Kodiak 10′ Rotary Cutter Outer Gearboxes
- Horsepower: 75-90
- For many 5 ft., 6 ft., and 7 ft. rotary cutters
- Housing construction: ductile iron
- Input shaft: 1-3/8 in. 6 spline
- Output shaft: 2 in. 15 spline
- Gear ratio: 1:1.46
- Rotation is CW or CCW with no internal modifications needed
- Comes with the castelated nut and pin as shown
- The hub for the blade carrier is included
- Mounting Pattern:
- (4) 3/4″ holes
- 8″ bolt pattern
- 5.5″ clearance for output cap
- For castle nut use ASC 102241 – 1″ Castle Nut
- Use ASC 89761 for replacement output seal
- Use ASC 89762 for pressure relief plug
- Use ASC 124422 for Input Shaft Seal
