Description

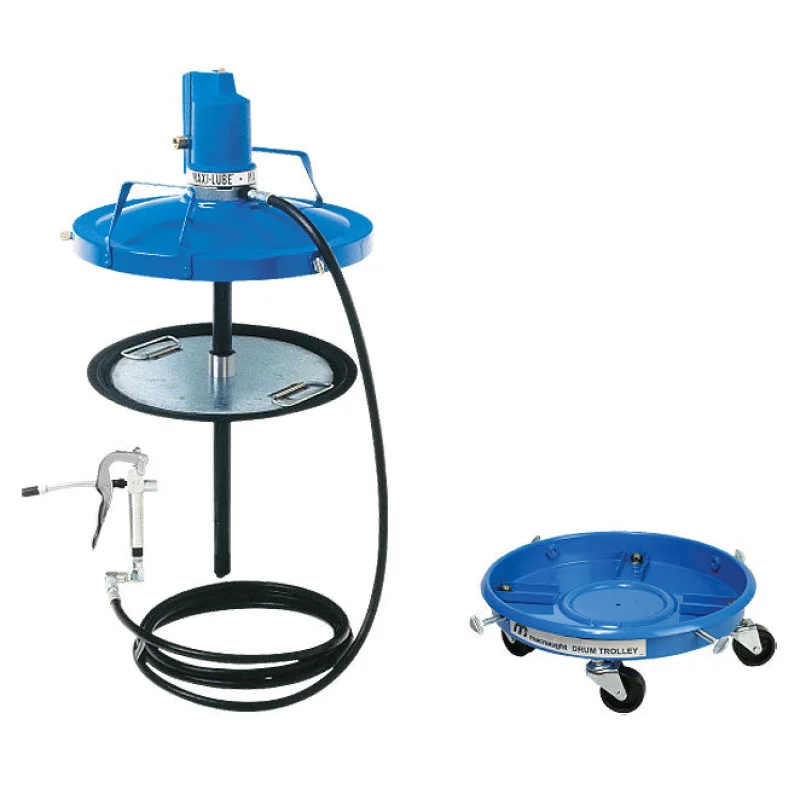

Engineered for 120 lb./16 Gal. containers. OurPneumatic Grease pumpshave low air consumption motor & dont need to be lubricated due to the use of modern polymer materials. Quiet air motor design Meets all industry noise level standards.Includes theB2 Booster Gun Boosts greasing pressure up to 10,000 psi. 50:1 ratio air motor delivers up to 16 oz/min of fast, efficient grease output. Users will save on power and avoid the oily mist and mess typically associated with air-operated equipment.
Zinc components For underground mining applications. Fully repairable Provides a longer service life. Rubber-edged follower plate Prevents air pockets and contamination. Macnaught air powered grease pumps are suitable for heavy-duty applications and comes with the industrys leading10-year warranty.
MacnaughtP6-TR Specifications
| Model number | P6-TR maxilube |
| Pump ratio | 50:1 Ratio |
| Max pump output pressure | 7,500 psi / 517BAR |
| Max gun output pressure | 10,000 psi / 689BAR |
| Bare pump | P6003 |
| Suited tocontainers | 120lb / 55kg |
| Hose | 13ft x 1/4inID delivery hose (4m x 6mm) |
| Control gun | B2 Booster Gun with ZSB swivel |
| Output at gun | 16 oz/min (460 g/min) |
| Airline Lubricator | Not required |
| Fully serviceable | |
| Warranty | 10 years |
| Parts guarantee | 10 years |
| Grease viscosity | Up to NLGI No.2 |
| Wetted components | Zinc, Hard Chrome-plated Carbon Steel, Brass, Nitrile and Polyurethane Rubber |
| Max air pressure | 150 psi |
| Min air pressure | 60 psi |
| Air inlet | 1/4 NPT (F) |
| Pump Outlet | 1/4 NPT (F) |
| Min compressor size | 3 cfm (0.08m/ min) |
Macnaught P6-TR Data Sheet:PDF
Macnaught P3-P6-P8 Air Operated Grease Pumps Instruction Manual:PDF
Macnaught P6-TR Features and Benefits
- Industry Leading 10-year Warranty
- Zinc components For underground mining applications
- 50:1 ratio air motor delivers up to 16 oz/min of fast, efficient grease output
- Non-corroding air motor design No airline lubricator required. Easy and low cost to repair
- Quiet air motor design Meets all industry noise level standards
- 13 ft high-pressure grease hose Extra hose length for easier access to difficult applications
- B2 Booster Gun Boosts greasing pressure up to 10,000 psi
- 360 ZSB Swivel Improves greasing flexibility and offers easier one-handed operation
- KY Supergrip three-jaw high-pressure coupler Positive no leak connection
- Rubber-edged follower plate Prevents air pockets and contamination
- Fully sealed greasing system with built-in grease strainer Clean grease delivery every time
- Heavy duty Trolley with wheels
- Fully repairable Provides a longer service life
