Description
Specifications
- Eurocardan

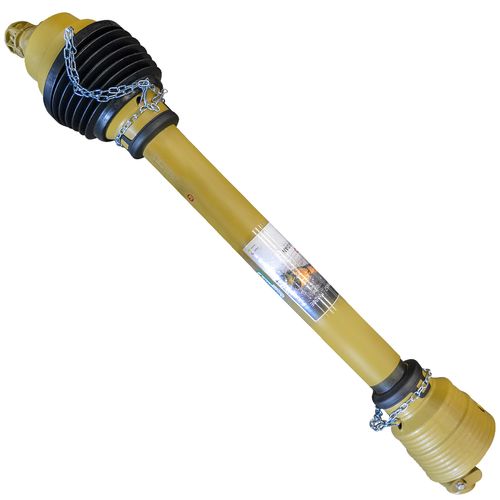

- CV8 1-3/8″ 21 Spline x 1-3/8″ 21 Spline PTO Shaft
- Part Number: AJ8010716389
- 55″ overall collapsed length
- 91 HP at 540 RPM
- 145 HP at 1000 RPM
- Series 8
- Tractor end: 80° CV with 1-3/8″ 21 spline MPC
- Implement end: 1-3/8″ 21 spline conical bolt
- Type: ME81020CV-SPL
- Safe extended length: 75.5″
- HP to RPM ratio (540 RPM): 92
- HP to RPM ratio (1000 RPM): 140
- For push pin use ASC 31375
Check out our selection of PTO Shaft Assemblies
Slip Clutch Implement End Yoke
| Assembly Description | Series Size | Length Overall | I.E. = Implement End T.E. = Tractor End |
|---|---|---|---|
| AJ8 | 8 | 55″ | 1 3/8-21/ 1 3/8-21 |
