Description
Specifications

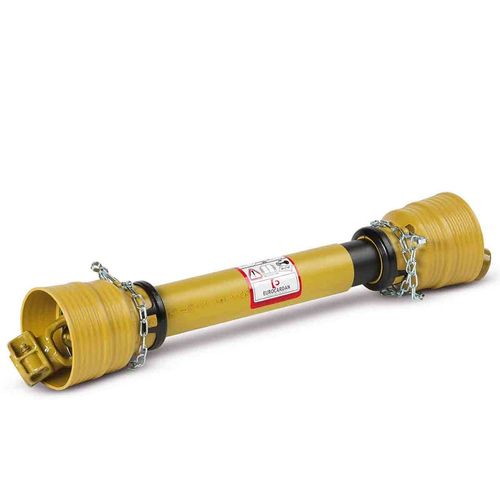

- Eurocardan
- AX1 series PTO shaft – 880/34.64″ length shaft (measured from center of the universal joint to the other center of the universal joint)
- Closed length: 41.4″
- Safe extended length: 60.7″
- 16 HP at 540 RPM
- 24 HP at 1000 RPM
- 1 3/8″ x 6 splined push pin tractor end yoke x 1 1/4″ smooth round implement end yoke
Slip Clutch Implement End Yoke
| Assembly Description | Series Size | Length Overall | I.E. = Implement EndT.E. = Tractor End |
|---|---|---|---|
| AX1 | 1 | 41.4″ | 1 3/8-6/ 1 1/4 smooth |
