Description
Specifications
- Eurocardan
- Part Number: AX4312116414

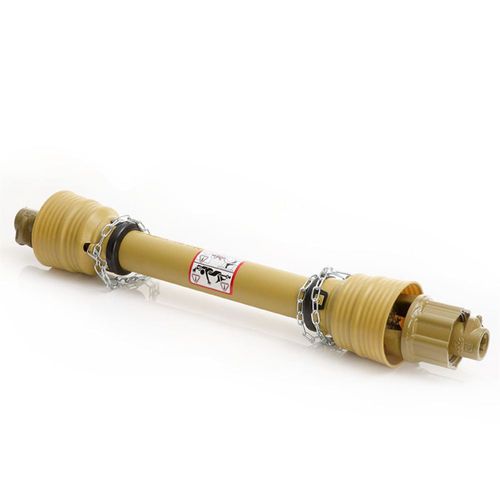

- TX4 series PTO shaft – the tractor end is a 1 3/8″ x 6 spline quick detach yoke and the implement end is a LN3 torque limiting clutch w/a 1 3/8″ x 6 spline quick detach end on it
- Closed length: 57.3″
- Safe extended length: 85″
- 35 HP at 540 RPM
- 54 HP at 1000 RPM
| Assembly Description | Series Size | Length Overall | I.E. = Implement End T.E. = Tractor End |
|---|---|---|---|
| AX4 | 4 | 57.3″ | 1 3/8-6/ 1 3/8-6 QD Yoke |
