Description
Specifications

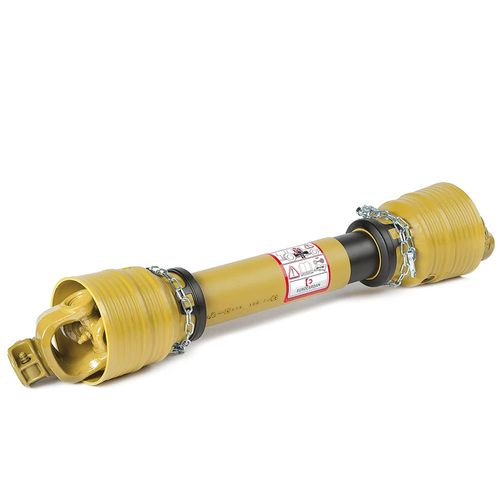

- Eurocardan
- PTO Shaft
- Part Number: AX55000-0072
- Series 5
- Keyway size: 3/8 in.
- Extended length: 74 in.
- Collapsed length: 48 in.
- 47 HP at 540 RPM
- 72 HP at 1000 RPM
- Suggested “to fit”: 6′ Lift Mower
- Max HP 540/1000: 47/74
- Tractor End x Equip. End: 1-3/8″ – 6 Spline x 1-1/2″ round smooth with 3/8″ keyway and set screw
- Shielding included
Smooth Bore & Shear Pin Implement End Yoke
| Assembly Description | Series Size | Length Overall | Description I.E. = Implement End T.E. = Tractor End |
|---|---|---|---|
| AX5 | 5 | 48″ | 1 1/2″ smooth bore / 3/8″ keyway / set screw / 1 3/8-6 T.E. |
