Description

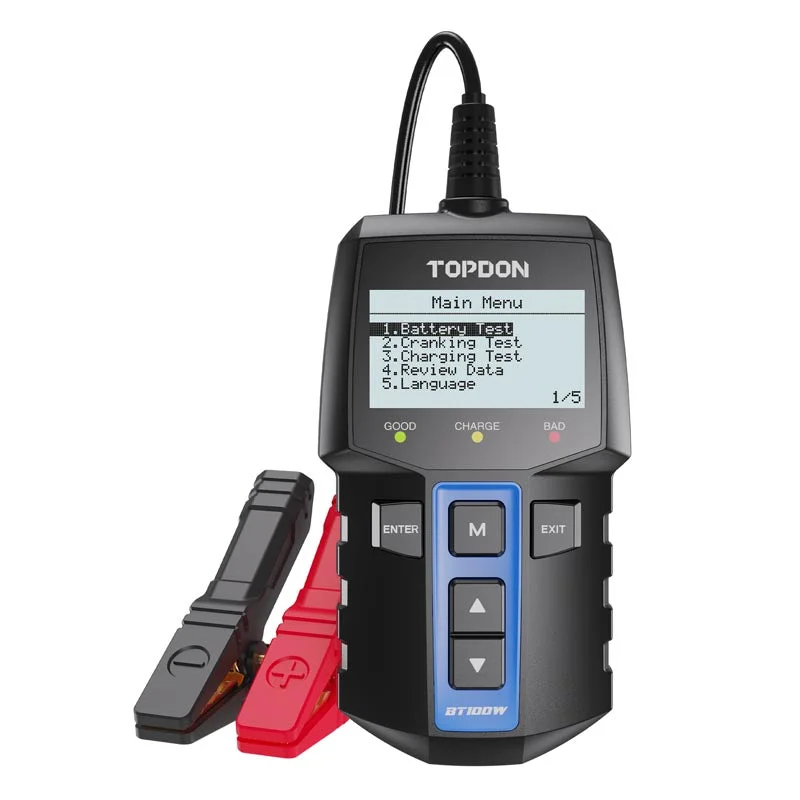

Bluetooth 12V Battery & System Tester
The BT100W is a battery tool that gives users the efficiency of a plug-and-play tool and the robust data analysis of a high-tech digital tester. The BT100W brings versatility to every garage because it can function as a standalone battery tester and run a variety of tests. Users can tap into the devices app for more advanced functions, enhanced data analysis, and view or save battery test reports in a separate folder. The versatility of the BT100W even extends into the number of languages the tool operates in. Users can select from eight languages to operate the BT100W device and nine languages from the BT100W app.
Testing via the Devices Interface or the App
Pair with the BT100Ws app to perform system testing. Access the battery library through the app to always have the battery data you need to get the job done.
Battery Tests
Find and mitigate potential issues with battery tests. Operate on a variety of battery types and analyze the batterys state of health, state of charge, and cold-cranking amps.
Cranking Tests
By monitoring the cranking time and cranking voltage, a cranking test helps to check the health and service life of a battery.
Charging Tests
Know with certainty whether the charging system is working properly and the car is ready for the road.
System Tests
Step into the BT100W app to run system tests. This battery tester supports a system test function, which enables technicians to perform a battery test, cranking test, and charging test, with only one click. The perfect tool for technicians seeking greater efficiency.
Battery Library
The BT100Ws battery library allows for easy access to key battery information such as battery standards, CCA, specifications and more.
Generates Test Reports
Create test reports to compile important battery status information in one spot. View data such as state of health, state of charge, internal resistance and more.
Data Synchronization
Data synchronization between the BT100W tester and the mobile application is performed seamlessly to ensure accurate information is displayed across both platforms.
Technical Specs
- Working Voltage: 9-18V
- Working Temperature Fahrenheit: 14 to 131
- Working Temperature Celsius: -10 to 55
- Storage Temperature Fahrenheit: -4 to 167
- Storage Temperature Celsius: -20 to 75
- Product Width (inches): 16.93
- Product Length (inches): 5.37
- Product Height (inches): 0.89
- Product Weight (lbs): 0.54
- Languages Supported: Device: EN/FR/ES/DE/IT/PT/RU/JP; App: CN/EN/FR/ES/DE/IT/PT/RU/JP
- Display Resolution: 128 x 64 pixels
- Connectivity: Bluetooth 5.0
- Cable Length: 31.5 Inches
Packaging
- What’s in the Box: BT100W, User Manual, Quick User Guide
- Product Length (inches): 5.37
- Product Width (inches): 16.93
- Product Height (inches): 0.89
- Product Weight (lbs): 0.54
