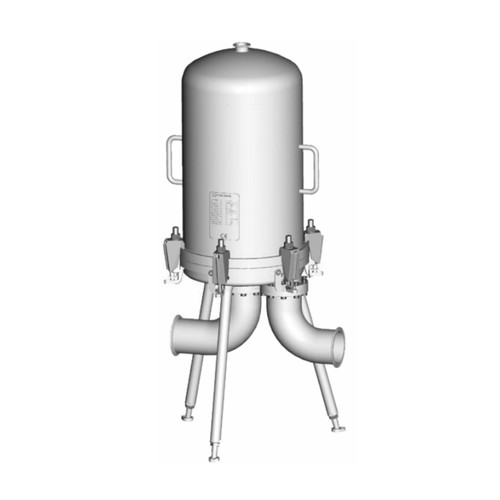

Donaldson 1C072600-C15 PF-EG 0320 1 1/2 in. Tri-Clamp 316L Stainless Steel Sanitary Liquid Filter Housing – 20/30 Element Size (Multiple Housing)
PF -EG stainless steel housing (PF -EG Standard series and PF -EG Superplus series) have been developed for the filtration of liquids. In combination with various Donaldson code 7 filter cartridges all liquid filter housings can be used within different application areas. The standard series PF -EG Single consists of six different housing sizes for flow rates from 0.79 to 19.81 gpm (3 to 75 l/min) – the series PF -EG Multiple of 17 housing sizes for flow rates of 39.63 to 792.52 gpm (150 to 3,000 l/min).
As an alternative to standard milkpipe connections, several other connection types are available. The Superplus version with a surface finish of Ra <0,8 µm has additional built-in pharma valves at the inlet and outlet.
Applications: Food & beverage, Dairy, Chemical, Pharmaceutical
