Description

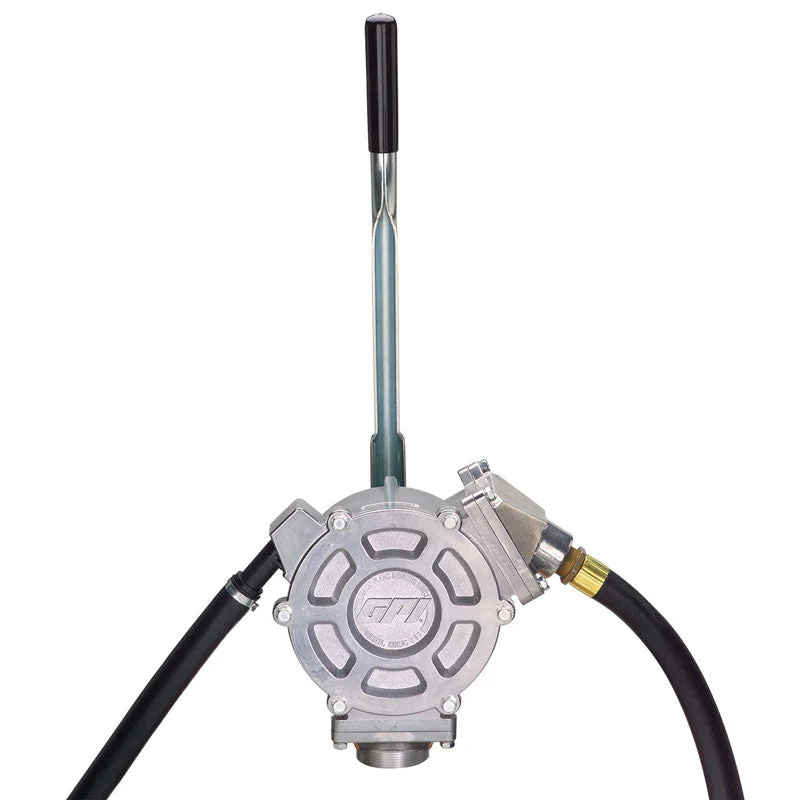

Dual Flo Fuel Transfer Hand Pump with 50 Gallon per 100 Strokes | BS-HP100-UL
For use with diesel (diesel blends to B20), gasoline (alcohol blends up to E15), hydraulic fluid, kerosene and 30W oil.
The HP-100 Fluid Transfer Pump is a high-performance piston hand pump built for reliability and versatility. It handles fuels and motor oils with ease. The Dual-Flo handle lets you select a 1/2-gallon per stroke for fast fuel transfer or a 1/4-gallon per stroke for smooth pumping of thicker fluids, even in temperatures as low as -25F (-32C).
Dual Flo Fuel Transfer Hand Pump Benefits
- Dual-Flo piston design pumps fluid on both the push and pull stroke, Built -in anti siphon valve.
- Includes a low setting for low-volume, low-resistance pumping (1/4 gallon) and a high setting for high volume, high-resistance pumping (1/2 gallon).
- Light-weight aluminum body provides corrosion resistance and reduces tank stress.
- Lockable handle deters fluid theft. Fits a 2 in. NPT bung.
- Includes a 3/4 in. x 8 ft. (2.44 m) Nitrile fuel dispensing hose with static wire and metal nozzle.
- For use with diesel (diesel blends to B20), gasoline (alcohol blends up to E15), hydraulic fluid, kerosene and 30W oil.
Dual Flo Fuel Transfer Hand Pump Specifications
| Max. Flow Rate | Up to 50 gallons per 100 stroke cycles |
| Technology | Piston |
| Operating Temperature | -25 F to 125 F (-32 C to 52 C) |
| Pump Housing Material | Corrosion-Resistant Aluminum |
| Wetted Materials | Acetal | Aluminum | Delrin | NBR | PTFE | Stainless Steel |
| Mounting Type/Thread | Direct Mount, 2in. MNPT |
| Suction Pipe | Polypropylene, Telescoping 15 to 40in. x 1in. MNPT |
| Inlet | 1 in. FNPT |
| Outlet | 3/4 in. FNPT |
| Dispensing Hose | 8 ft. (2.44 m) x 3/4 in. |
| Nozzle | Spout, Metal |
| Nozzle Holder Type | Built-in |
| What’s in the Box | HP-100-UL Up to 50 Gal per 100 strokes hand pump, telescoping suction pipe, dispensing hose, lockable lever, owner’s manual. |
| Warranty | 2-yr |
| UPC | 031401114102 |
| Approvals | UL Listed Hand Operated Pump for Flammable and Combustible Liquids Per UL Subject 124 |
