Description
Metered Oil Control Gun, Black shroud, rigid ext., trigger guard, locking trigger, non-drip auto nozzle, 1/2NPT inlet & LCD with Batch & Total.

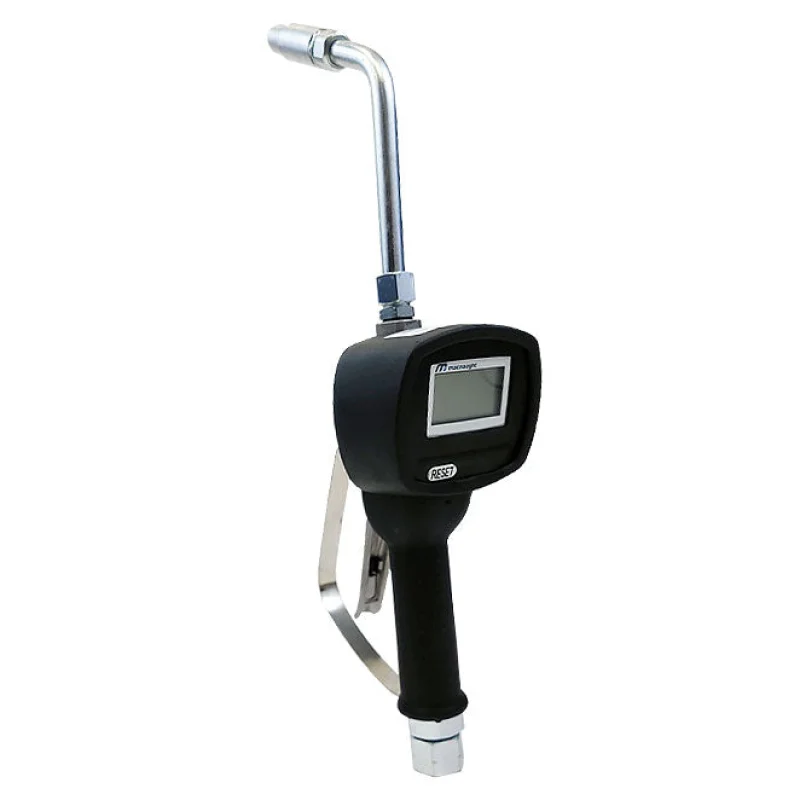

Macnaught offers the HG55R-02 Electronic oil control gun with rigid extension. Features include, locking trigger and non-drip nozzle, resettable batch total and a non-resettable total. The meter accuracy is +/- 0.5% of reading, working pressures up to 1500psi (10,350kPa) and flow rates up to 8 gallons per minute. Used for oil, ATF and antifreeze up to a maximum viscosity of SAE 140. All Macnaught oil control guns come with a fully supported 10-Year Warranty!
INCLUDES 10 YEAR WARRANTY!
Frequently bought together with:Ratio Air Operated Oil Stub Pump OILMASTER T312-02or theRatio Air Operated Oil Stub Pump OILMASTER T512-02
Macnaught Metered Control Gun Specifications
| Model number | HG55R-02 |
| Flow Range | 0.26-8gal(1-30L)/min |
| Inlet Swivel | 1/2 NPT (F) |
| Meter | oval gear / digital |
| Meter Accuracy | +/-.05% (lube oils) |
| Features | 5-digit resettable batchtotalizer 6-digit accumulativetotalizer sleep mode to conserve battery life EEPROM information retention for battery change |
| Extension | ridgid |
| Non drip nozzle | automatic |
| Latching Trigger | |
| Fully Serviceable | |
| Warranty | 10 years |
MeteredControl Guns Data Sheet:PDF
Instruction Manual: PDF
Features & Benefits:
- Oval gear digital meter
- Digital meter or Electronic meter +/- 0.5 %
- 5-digit resettable batch totalizer
- 6-digit accumulative totalizer
- Auto Non-Drip Nozzle
- Flexible extension
- 1/2″NPT swivel inlet
- Trigger lock
- Fully serviceable
Value Proposition:
- Accurate control and measurement of oil usage.
Package Includes:
- Gun complete withridged extension and automatic nozzle
