Description

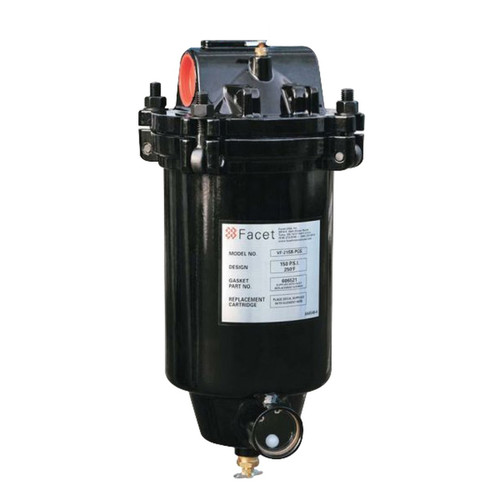

The Facet VF-21SB is versatile, compact, economical, light weight housing for superior in-line filtration protection. These housings utilize the same elements as previous series, but offer the benefit of a quick open swing bolt type close.
Depending on the type of cartridge selected, the housing may be used as a filter, absorptive filter, filter separator, or air/gas entrainment separator to remove solids, water, mist or hydrocarbon carryover.
Vessel Options
| Model | Description |
|---|---|
| VF-21SB | Housing only |
| VF-21SB-PG | Housing w/ Direct Reading Differential Pressure Gauge |
| VF-21SB-PGS | Housing w/ Direct Reading Differential Pressure Gauge & Sight Glass |
| VF-21SB-PG2 | Housing w/ (2) 1/8 in. NPT holes for Differential Pressure Gauge (not included) |
| VF-21SB-PG2WP | Housing w/ (2) 1/8 in. NPT holes for Differential Pressure Gauge (not included) & 3/4 in. Coupling for Water Probe (not included) |
Caution: Full flow monitors are not for use in fuel containing anti-icing additive (FSII, PRIST, DI-EGME). This includes pre-mixed and military fuels containing this additive.
