Description
This slip clutch can connect to your 4, 5 or 6 series PTO shaft. The shaft is 1-3/8″ x 6 spline and the hub is set up for a 1-3/8″ x 6 spline also. The overall length is 7-1/4″
Specifications:

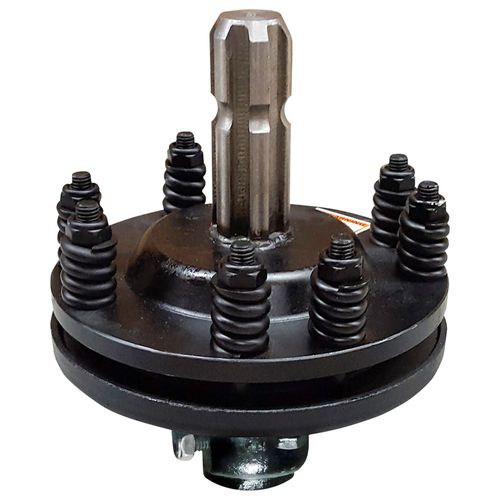

- GR1 Slip Clutch
- Male end: 1-3/8 in. x 6 spline
- Female end: 1-3/8 in. x 6 spline
- 8 bolt hub assembly
- For: 4, 5 or 6 series PTO shafts
- Overall length: 7-1/4 in.
- Overall diameter is 7.09 inches
- Slipping torque: 7970 in. lbs.
- Use ASC 90653 if you need a smooth shaft on your slip clutch
Replacement Parts
- 102249 – Friction Disc for 2 Disc Clutch
