Description
*Use 3/8 in (9.5 mm) air regulator (109075); must be ordered separately.
A three inch differential air motor ensures smooth pumping and the smooth double-acting pump design provides reliable fluid flow and accurate dispense.

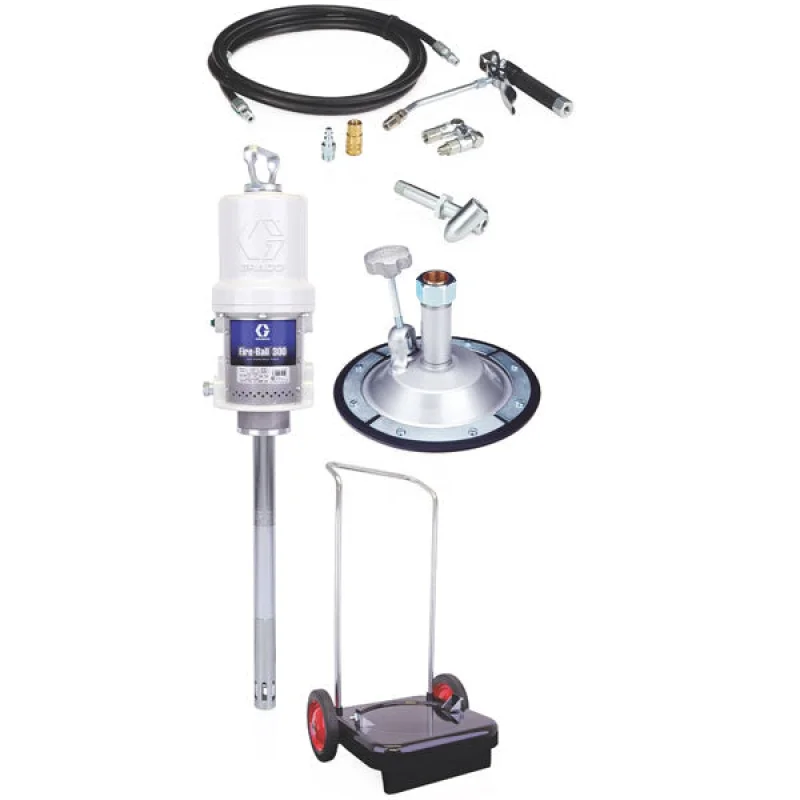

- Install the Fire-Ball 300 50:1 in grease dispense applications.
- Durable: Thick cast aluminum air motor housing offers unmatched durability.
- Fewer Repairs:Fewer moving parts in the air motor assembly means less downtime and low repair cost.
- Extended Seal Life:In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
- Reduce Downtime:Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
- Superior Sealing:Non-metallic poppet valves offer positive sealing performance, even with contaminated “dirty” air environments for long life without repair.
- Reduced Icing:Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
- Corrosion-Resistant:Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.
| Package Number | 226012 |
| Type of Package | Cart-mounted pail dispenser |
| Ratio | 50:1 |
| Container Size | 50 LB (23 kg) |
| Pump Part Number | 239877 |
| Dispense Kit | 222070 |
| Fluid Hose | 1/4 in x 12 ft |
| Hose Part Number | 109151 |
| Air Coupler | 114558 |
| Air Fitting | 169971 |
| Z-Swivel | 202577 |
| Dispenser | Pro-Shot |
| Dispenser Part Number | 242056 |
| Follower Plate | – |
| Drum Cover | – |
| Holster | 203976 |
| Container | – |
| Portable Base | 203650 |
| Elevator | 203664 |
| Inductor Plate | 204351 |
| Instruction Manual | 307878 |
| CE Package | 240886 |
TECHNICAL SPECIFICATIONS
| Air Inlet Size (in) | 0.375 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Industrial |
| Compatible Material | Grease |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Fluid Inlet Type | Slotted |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Includes | Fireball 300 50:1 Pump, Portable Truck, Dispense Kit |
| Maximum Working Pressure (MPa) | 35 |
| Maximum Working Pressure (psi) | 5000 |
| Motor Type | Pneumatic |
| Power Type | Pneumatic |
| Pump Ratio | 50:1 |
| Series | 300 |
| Type | Piston Pump Package |
| Wetted Material | CS, Delrin, Buna-N, Polyurethane |
