Description
Stay ahead of the competition with LD Series pumps. These affordable and full-featured pumps are designed for lowervolume (up to 7,000 lb/year) applications. LD pumps are fine-tuned for a compact, flexible and durable solution.
- Three Inch Air Motor: Provides more power to create better flow.
- Engineered for Durability:Patented cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
- Modular Air Valve:Air inlet and exhaust locations are easy to configure with just four bolts for simple, hassle free installations.
- Pilot Valves:Patented self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.

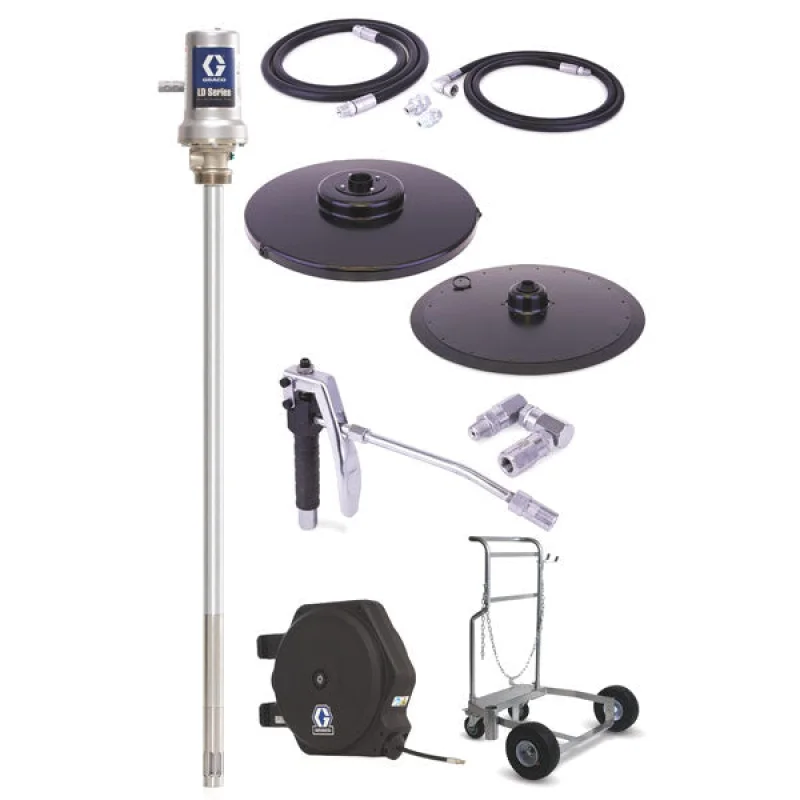

| Package Number | 24J066 |
| Ratio | 50:1 |
| Type of Package | Mobile |
| Container Size | 400 lb (180 kg) |
| Pump Part Number | 24G606 |
| Hose Kit | 24J501 |
| Hose Sizes | Grease 1/4 in ID x 6 ft (1.8 m) |
| Air/Water 3/8 in ID x 6 ft (1.8 m) | |
| Follower Plate | 24F903 |
| Drum Cover | 24F906 |
| Grease Valve | 129581 |
| Z-Swivel | 129591 |
| Fitting(s) | – |
| Air Regulator | – |
| Air Filter | – |
| Type of Reel | LD |
| Reel Size | 1/4 in x 35 ft |
| Reel Part Number | 24H663 |
| Portable Base | 24F915 |
| Instruction Manual | 3A1335 |
| CE Package | 24J069 |
TECHNICAL SPECIFICATIONS
| Air Inlet Size (in) | 0.25 |
| Application | Grease |
| Compatible Material | Grease |
| Fluid Outlet Size (in) | 1/4 |
| Maximum Working Pressure (MPa) | 35 |
| Maximum Working Pressure (psi) | 5000 |
| Power Type | Pneumatic |
| Pump Ratio | 50:1 |
| Type | Piston Pump Package |
| Wetted Material | Steel, Brass, Nitrile Rubber, Polyurethane, UHMWPE, Acetal |
