Description

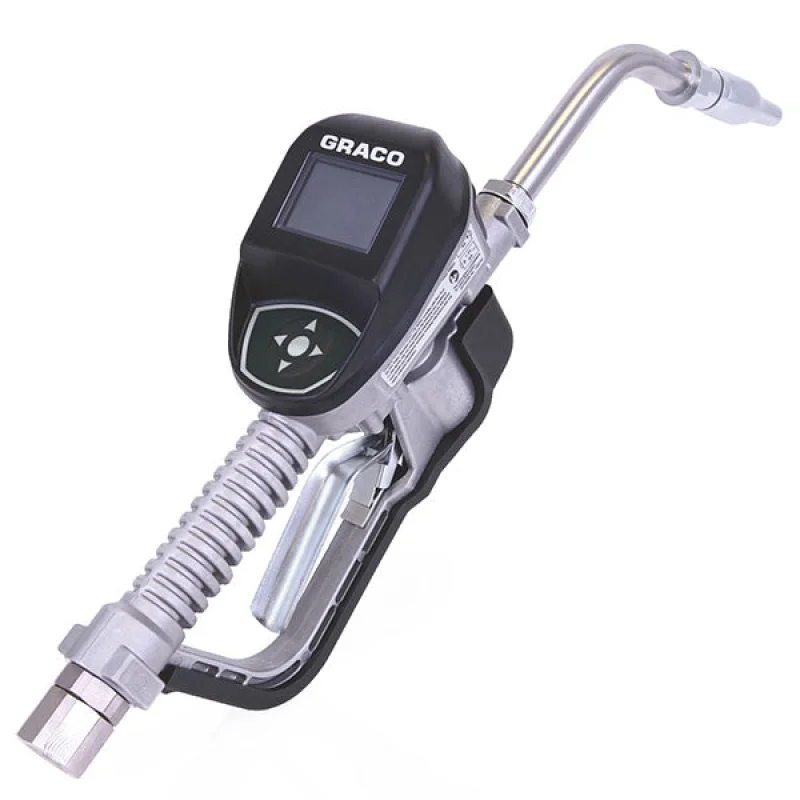

SDP18 Series Electronic Preset Oil/Anti-Freeze Meter – Rigid Extension – 1/2″ Inlet
Gracos premium SD meters were designed from the ground up to provide the best user experience. These robust meters feature high flow, improved ergonomics and a large high-contrast LCD screen to make viewing dispense amounts easy in all lighting conditions.
- UpgradeableSD Preset meters are compatible with PULSE FC fluid control system
- Large, Intuitive Displayhigh-contrast display for low and bright light conditions
- Long valve lifecartridge spool valve specifically designed to reduce wear and reduce costly down time
- Ergonomicfour-finger trigger and easy-to-use button pad reduce worker fatigue
- Reliabletime-tested Graco engineering
- DurableThick cast aluminum body allows this meter to endure harsh, heavy-duty applications
- Long battery lifeuses 4 AA easy-to-replace batteries
Technical Specifications
| Compatible Material | Oil, Antifreeze, ATF, Gear Oil |
| Dispense Type | Preset |
| Display Type | Electronic |
| Extension Type | Rigid |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Thread Gender | Female |
| Includes | Nozzle, Rigid Extension |
| Inlet Size (in) | 1/2 |
| Inlet Thread Type | NPT |
| Maximum Flow Rate (GPM) | 18 |
| Maximum Operating Temperature (F) | 158 |
| Maximum Recorded Dispense | 9999 |
| Maximum Storage Temperature (F) | 158 |
| Maximum Working Pressure (MPa) | 10.3 |
| Maximum Working Pressure (psi) | 1500 |
| Meter Accuracy (%) | 0.5 |
| Meter Technology | Oval Gear |
| Metering Gun Weight (lb) | 5.3 |
| Minimum Flow Rate (GPM) | 0.25 |
| Minimum Operating Temperature (F) | 4 |
| Nozzle Type | Manual |
| Outlet Thread Type | Straight Thread O-Ring Boss |
| Overall Height (in) | 5.75 |
| Overall Length (in) | 13 |
| Overall Width (in) | 3.75 |
| Product Type | Meter |
| Recommended Environment | Indoor |
| Trigger Lock | Locking |
| Trigger Protection Type | Guard |
| Type | Electronic Metered Dispense Valve |
| Unit of Measure | Quart, Pint, Gallon, Liter |
| Valve Type | Metered |
| Warranty | 5 Years Structural Components, 3 Years Electronics, 1 Year Wear Parts |
| Wetted Material | Aluminum, Stainless Steel, PBT/PC, Zinc, Nitrile Rubber, CS |
