Description

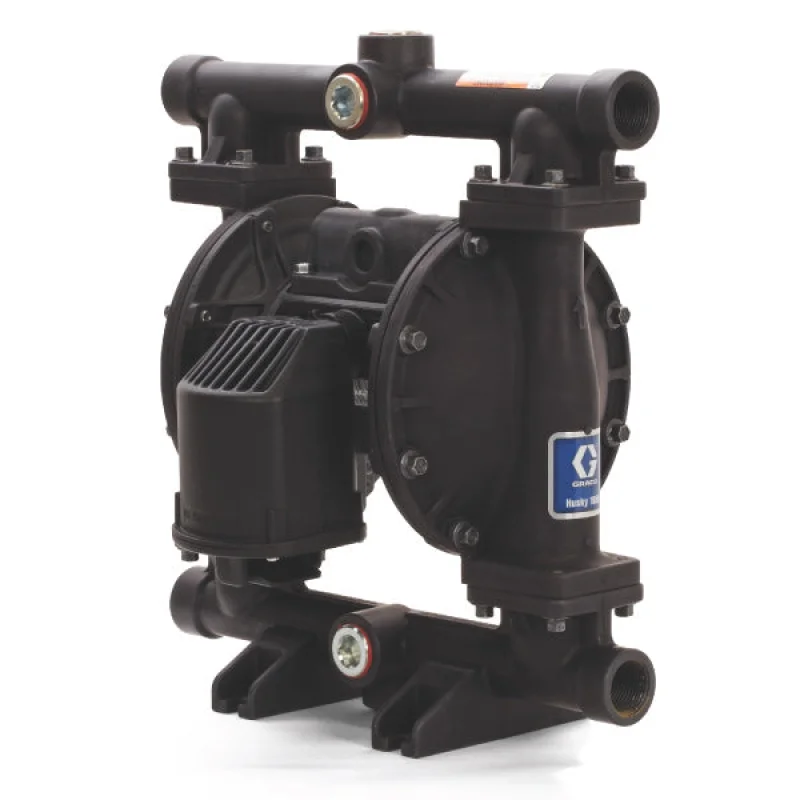

*UL Certified* Husky 1050 Series Air-Operated Double Diaphragm Transfer Pump for Oil Evacuation, Oil Transfer, Buna-N/Acetal/TPE
The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.
Determine the best Husky pump for your applications. at Graco Husky Air Operation Double Diaphragm Pump Selection Guide.
Download Husky 1050 Series Product Manual
| Part Number | Pump Description | Fluids |
Max PSI |
|
647731 |
Husky 1050 Aluminum 1 in Aluminum/Buna-N |
|
100 psi (6.9 bar) |
FEATURES
The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.
- Longer Diaphragm Life
Up to 5x longer diaphragm life for less maintenance and downtime - Modular Air Valve
Stall-free, low pulsation operation provides smooth and rapid changeover - One-Piece Center Section
Eliminates air leaks for more efficient operation - Four Bolt Joint Design
Bolted design provides even sealing pressure for leak-free operation - Multiple Ports
Increased number of ports for installation flexibility - Optional Features
- DataTrak – Runaway protection and tracks material usage
- Pulse Output – Cycle count capability
- Spring loaded, externally serviceable pilot valves for faster change over and reduced pulsation
- 30% more efficient than the market leader
- 20% increase in fluid flow compared to the Husky 1040
TECHNICAL SPECIFICATIONS
| Air Exhaust Port Size (in) | 3/4 |
| Air Exhaust Port Thread Gender | Female |
| Air Exhaust Port Thread Type | NPT |
| Air Inlet Size (in) | 1/2 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Industrial |
| Ball Material | Acetal |
| Center Section Material | Aluminum |
| Compatible Material | Oil, Water, Antifreeze |
| Connection Type | Threaded |
| Diaphragm Material | TPE |
| Fluid Inlet Size (in) | 1 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 1 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Fluid Section Material | Aluminum |
| For Use With | Oil, Waste Oil |
| Manifold O-Ring Material | None |
| Material | Aluminum |
| Maximum Air Consumption (SCFM) | 25 |
| Maximum Air Pressure (MPa) | 0.69 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Cycle Rate (CPM) | 280 |
| Maximum Flow Rate (GPM) | 50 |
| Maximum Fluid Pressure (MPa) | 0.69 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Solid Size (in) | 0.125 |
| Overall Height (in) | 15.9 |
| Power Source | Air |
| Pump Ratio | 1:1 |
| Seat Material | Buna |
| Standards Met | UL |
| Type | Pneumatic Diaphragm Pump |
| Weight (lb) | 23 |
| Wetted Material | Aluminum, TPC-ET, Acetal, PTFE, Buna-N |
