Description

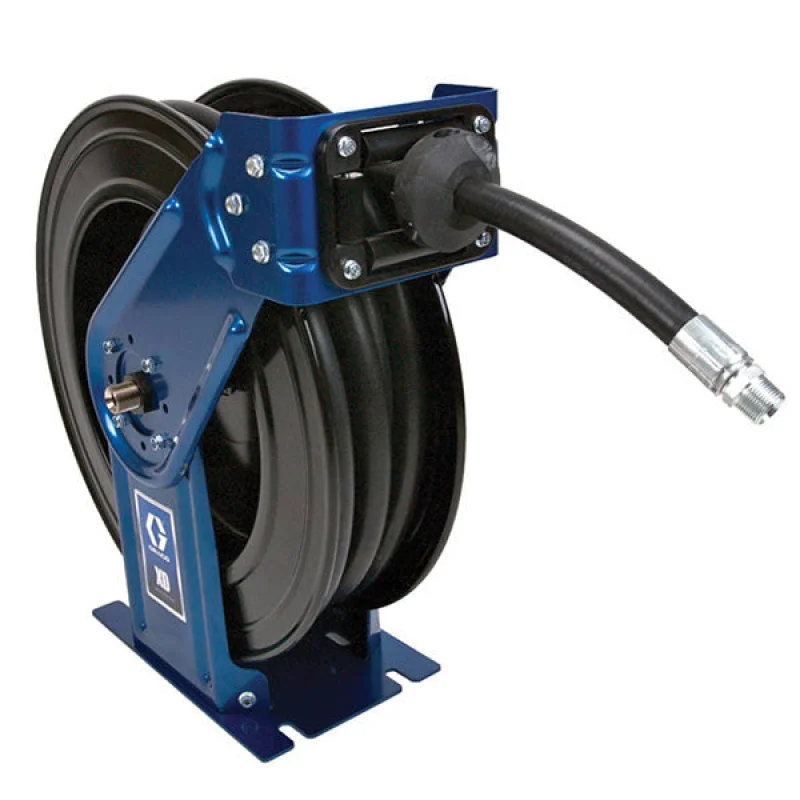

Graco XD30, Oil, 3/4 in. (19 mm) Inlet, 3/4 in. X 50 ft. (19 mm X 15 m) Hose, NPT, Truck/Bench Mount, Metallic Blue
Gracos XD30 Series Hose Reels are used in applications requiring longer-range dispense and higher capacity than the standard XD10 and XD20 Series. The Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (9.1-22.8 meters) hose capacity for a wide variety of applications. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze, windshield washer fluid, pressure wash, waste oil and diesel exhaust fluid (DEF).
Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks.
- Spring Adjustment – Increase or decrease spring tension while reel is pressurized with fluid
- Full-Flow Swivel – Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
- Optional Adjustable Arm – Easily change the arm position for your application, order with arm (HS models) or without (HN models)
- Durable Finish – Baked-on enamel finish protects reel from corrosion
- Large Hose Capacity with Small Profile – Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (91-228 meters) hose capacity for a wide variety of applications
Download Product Manual
Download Product Brochure
Technical Specifications
| Application | Oil |
| Color | Metallic Blue |
| Dry Weight (lb) | 98 |
| Frame Type | Dual Pedestal |
| Hose Inside Diameter (in) | 3/4 |
| Hose Length (ft) | 50 |
| Hose Reel Type | Reel with Hose |
| Inlet Size (in) | 3/4 |
| Inlet Thread Type | NPSM |
| Maximum Working Pressure (psi) | 1250 |
| Mount Location | Truck Mount, Bench Mount |
| Outlet Size (in) | 3/4 |
| Overall Height (in) | 23.10 |
| Overall Length (in) | 22.12 |
| Overall Width (in) | 9.0 |
| Recommended Environment | Indoor, Outdoor |
| Recommended Fluid Type | Oil |
| Reel Thread Type | NPT |
| Series | 30 |
| Type | Spring-Rewind Reel |
| Wetted Parts | Nickel-Plated Carbon Steel, Aluminum, Buna-N, UHMWPE |
