Description

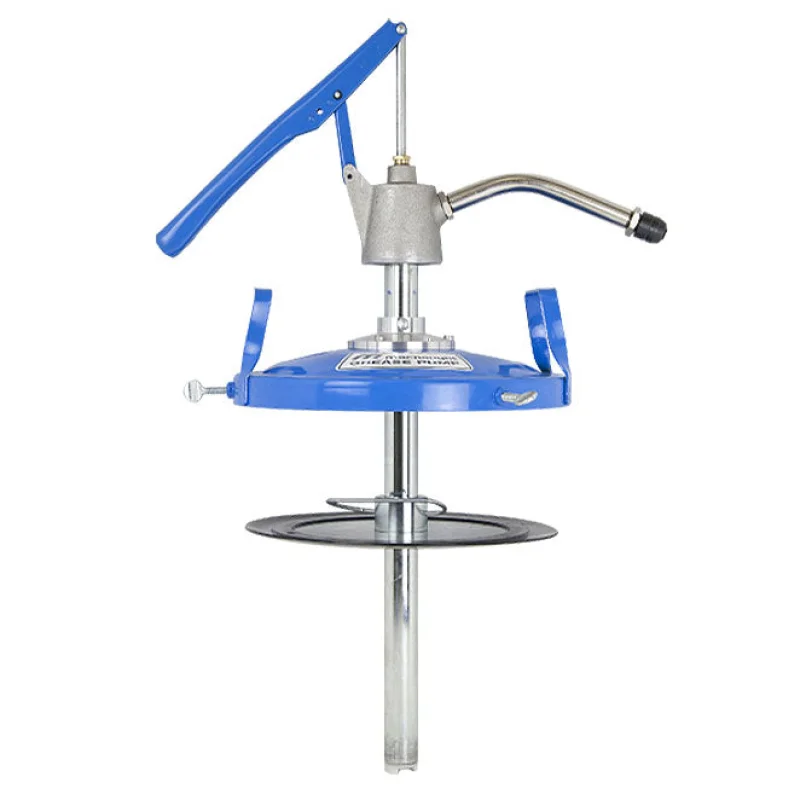

Bulk Fill Grease Pump System
An economical solution for refilling standard grease guns and pumps from larger bulk pails. The standard J3 fills Macnuaghts range of hand,air-powered gunsand mini-lube KT5 and KT6 containers. Since 1948, Macnaught Grease conveyance have been built to support the harsh Australian mining industry. Since then, our products have surpassed the toughest mining, automotive, trucking, marine, heavy equipment, municipal & aviation lubrication shop expectations globally. Flexigun, Levergun and Grease Transfer Pump models available. All of our grease conveyance products carry the industrys longestwarranty 10 years.For the very best cost of ownership, Macnaught products will provide years of trouble-free service we guarantee it!
Macnaught J3-01 Specifications
| Model number | J3-01 |
| Manual Transfer Pump | |
| J65 bulk ll nozzle | |
| Fully serviceable | |
| Extension | Rigid |
| Suited topails | 44lb/20kg |
| Output volume | 2oz per stroke/54g |
| Max grease type | NLGI No.2 |
| Warranty | 10 years |
Macnaught J3-01 Data Sheet: PDF
Macnaught J3-01 Instruction Manual: PDF
Macnaught J3-01 Features and Benefits
- Grease output is 54 grams per stroke up to NLGI 2 grease
- Industry leading 10-year warranty
- Heavy-duty, stepped barrel for long service and easy grip
- Robust zinc handle
- Filler bleeder opens by hand with no tools
- Screw fasteners for easy servicing no rivets
- Machined barrel threads screw on easily to head
- Lock the plunge rod into the follower for easier bleeding
