Description

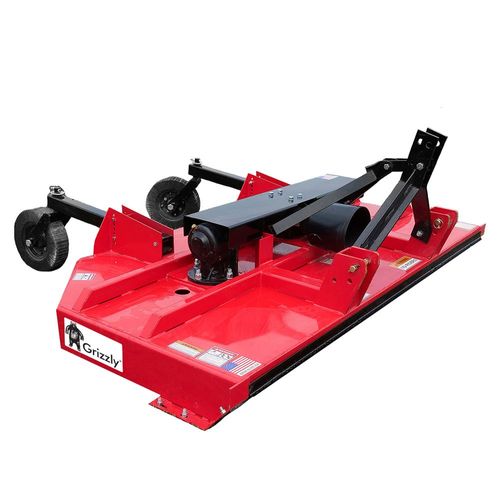

This mower is designed to work with 42-52 horsepower tractors and has dual spindles with two free-swinging blades that reduce the shock of impact when a stationary object is contracted. CHAINS NOT INCLUDED. Can be ordered direct ship from the vendor through us. The PTO Shaft that is included is a length to fit a wide variety of tractors, and possible that it is too long for your application. If the PTO Shaft needs to be shortened, follow the manufacturer’s instructions in the manual and/or contact us if you have questions.If the shaft is too long, it could damage both the mower’s gearbox and gearbox mounting plate on the deck.
Specification
- Grizzly
- Part number: 1810
- 1800 Series Lift-Type Cutter
- Heavy-Duty
- PTO HP: 52
- Width: 120-inch
- Weight: 1480 lbs.
- Transport width: 122 inches
- The driveline shield and clutch are included but may need to be shortened for your application to prevent mower gearbox damage.Consult the owner’s manual or contact us if questions.
- Cutting height: 2-10 inches
- Cutting capacity: 3 inch
- Deck thickness: 7 gauge
- Side bands: 8 inch
- PTO drive shaft: Series 5 with slip clutch
- Center drive shaft; shock coupler protected
- Stump jumper: 1/2 inch plate
- Center Gearbox: 125 HP
- Outboard Gearbox: 100 HP
- Laminated wheels
- Hub: bearing
- Category 1& 2 hitch
- Skid shoes: replaceable
- Quick hitch compatible
- For Counter Clockwise Blade use ASC 122451
- For Clockwise Blade use ASC 123725
- For Blade carrier use ASC 123726
- For Blade Bolt use ASC 49330
- For PTO Shaft use ASC 42969A
- For replacementcenter gearbox use ASC 89752
- For flex coupler assemblies (shafts in between gearboxes) use ASC 36950
- Chains are not included
- Additional chains can be ordered from Agri Supply Office from vendor
- 5-year manufacturing warranty (Agri Supply® covers the first year)
