Description

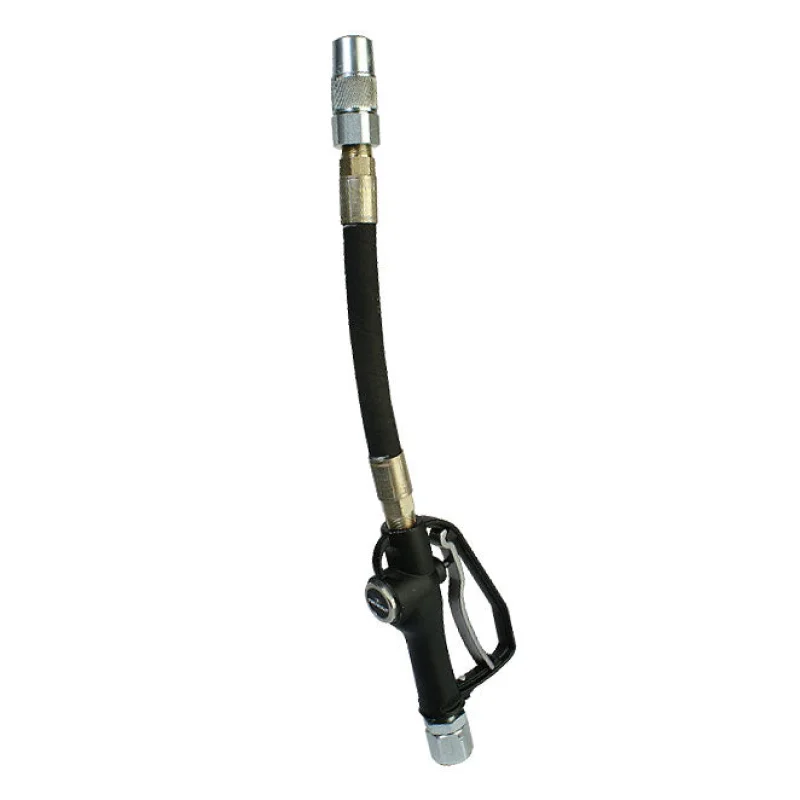

High volume oil control gun with flexible extension and manual non-drip nozzle. Fitted with trigger guard lockingtrigger and full flow 3/4 BSP(F) inlet swivel. Up to 10,350 kPa (1500 psi) maximum working pressure. Flow rateup to 57L/min (15 US gal/min). The Manual nozzle allows full flow with minimum pressure drop.
INCLUDES 10 YEAR WARRANTY!
Frequently bought together with:Ratio Air Operated Oil Stub Pump OILMASTER T312-02or theRatio Air Operated Oil Stub Pump OILMASTER T512-02
Macnaught Metered Control Gun Specifications
| Model number | HG100-02 |
| Flow Range | up to 15gal(57L)/min |
| Inlet Swivel | 3/4 NPT (F) |
| Meter | X |
| Meter Accuracy | X |
| Features | Hi-Flow. Heavy duty design. Trigger Guard for hand protection. Balanced valve assemblyfor max flow control. |
| Extension | Flexible |
| Non drip nozzle | Manual |
| Latching Trigger | |
| Fully Serviceable | |
| Warranty | 10 years |
| Parts Guarantee | 10 years |
| Compatible Fluid | oils up to SAE140, automatic trans fluid, engine oil, gear oil, hydraulic oil, coolant |
| Max Working Pressure | 1500psi (10 350kPa) |
MeteredControl Guns Data Sheet:PDF
Instruction Manual: PDF
Features & Benefits:
- Allows high flow with minimum pressure loss
- Auto Non-Drip Nozzle
- Flexible extension
- 3/4″ NPT swivel inlet
- Trigger guard
- Trigger lock
- Fully serviceable
Value Proposition:
- Allows high flow with minimum pressure loss
Package includes:
- HG100 Handle
- Flexible extension
- Full Flow manual non-drip nozzle
