Description

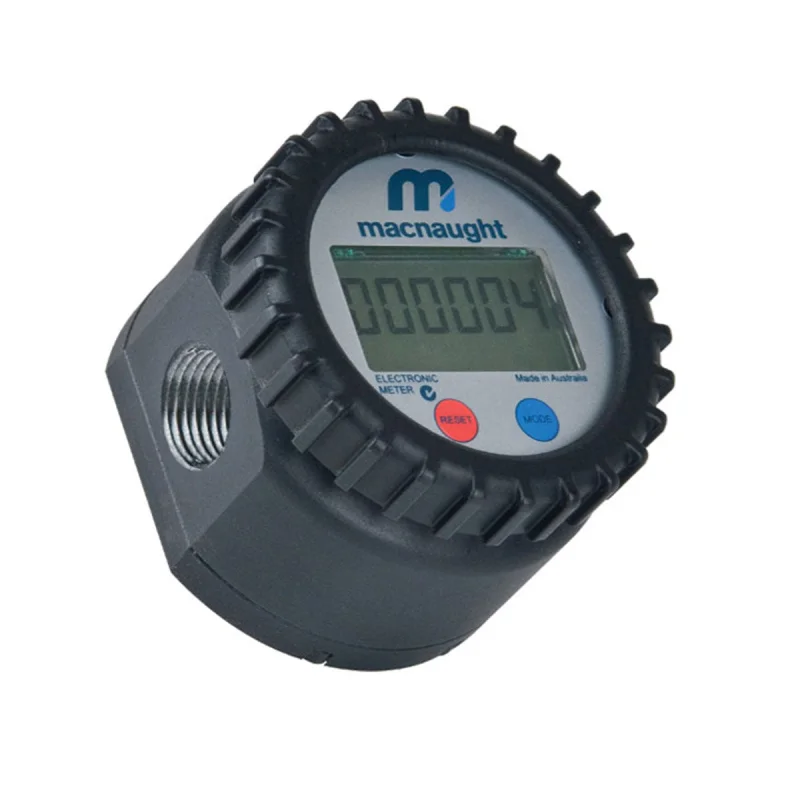

In-line Oval Gear Oil Flow Meter
Macnaught offers the IM019E-02 in-line oval gear digital register with accuracy of +/- 0.5%.The meter has a easy to read display with both batch and cumulative totals. The 3/4 inch NPT ports and a working pressure of up to 1,000 psi combine to allow for flow rates of up to 21 gallons a minute. Used for in-line oil monitoring applications or can be added to a non-metered oil guns. Compatible with oil, ATF, hydraulic fluid, diesel, kerosene and antifreeze up to a maximum viscosity of SAE 140. All Macnaught in-line meters come with a fully supported 2-Year Warranty!
INCLUDES 2 YEAR WARRANTY!
Features & Benefits:
- In-line oval gear technology
- Economic and accurate fluid measurements
- Digital LC display
- Six digit resettable batch and non-resettable cumulative totals
- Flow rate up to 21 gallons per minute with up to SAE140 viscosity
- Compatible with oil, ATF, hydraulic fluid, diesel, kerosene and antifreeze
Value Proposition
- Economic, accurate and reliable electronic flow meter
Macnaught In-Line Oil Flow Meters
| Model Number | IM019E-02 |
| Flow range | 0.8-21gal(3 – 80L)/min |
| Meter / register | Oval gear / Digital |
| Accuracy (flow rate) | +/- 0.5% (lube oils) |
| Features | 6-digit digital display resettable and non resettable totals flow rate mode |
| Protective shroud | |
| Inlet port | 3/4″ NPT (F) |
| Outlet port | 3/4″ NPT (F) |
| Fully serviceable | |
| Warranty | 2 years |
| Parts guarantee | 10 years |
| Compatible fluids | Oils up to SAE140, automatic trans fluid, engine oil, gear oil, hydraulic oil. coolant, diesel, keroene |
Documentation
Macnaught In-line oil meter data sheet: PDF
Instruction Manual: PDF
